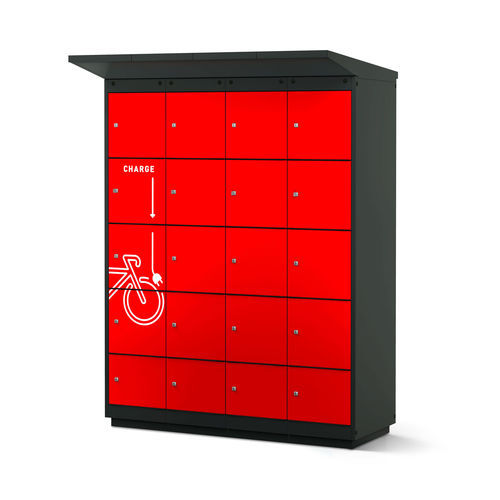

Electric bike charging station 2663-040501-1601114_V.1603

for electric scootergalvanised steelsecure

Product overview
LOCKEEL® e-bike charging station for secure outdoor charging of e-bikes, pedelecs and small device batteries. It features 16 spacious compartments with integrated double sockets allowing simultaneous charging and storage for e-bikes, electric scooters, power tools and technical equipment.

Construction and housing
The cabinet is made of moisture- and weather-resistant galvanised sheet steel with a UV-resistant stove-enamel finish. Double-walled doors provide dust- and moisture-protected storage; they close flush and are tight-fitting thanks to a magnetic catch and rubber bumpers that reduce noise. The rust- and weather-resistant base has leveling feet and is prepared for anchoring to the ground.

Electrical and compartments

• Each compartment is equipped with two IP54 sockets (230 V, 16 A) with overvoltage protection.
• Sockets in upper compartments are slightly offset downwards for improved accessibility.
• Includes four service compartments at the bottom.

Quality & options
The station is available in various colours and can be fitted with different locking systems. The service compartment is supplied with a cylinder lock as standard. A master key for emergency opening is included with delivery.

Assembly instructions
The station must be installed on a stable concrete foundation with minimum dimensions 166 × 62 cm and a recommended depth of 50 cm. A cable conduit with a three-core connection cable (minimum cross-section 2.5 mm²) must be routed through the centre of the foundation. A drilling template for anchoring is included. Detailed installation information is provided in the operating instructions.

Included information (high level)

• Robust construction with specified sheet thicknesses.
• Designed for outdoor use and weather resistance.
• Suitable for e-bikes, electric scooters and device batteries.

Characteristics / technical specifications

• Number of doors: 16
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: 1-bolt cylinder lock
• Loading port: F-type plug
• Material: Galvanised steel sheet
• Sheet thickness body: 1.0 mm
• Sheet thickness door: 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 166 cm
• Weight: 440 kg
• Sockets per compartment: 2 × IP54 sockets (230 V, 16 A) with overvoltage protection
