Electric bike charging station 2663-040500-1601114_V.1601

for electric scootergalvanised steelpainted steel

Overview

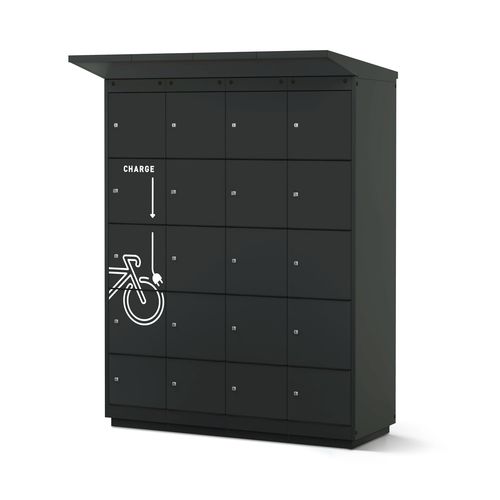

The LOCKEEL® e-bike charging station stores and charges batteries for e-bikes, pedelecs, electric scooters and other portable technical equipment. It features 16 spacious compartments with integrated double sockets and a dedicated service compartment per column for maintenance and emergency access.

Construction and protection
The cabinet is built from moisture- and weather-resistant galvanized steel sheet with a UV-resistant stove-enamel finish. Double-walled doors provide dust- and moisture-protected storage and close flush with a magnetic catch. Rubber bumpers on the doors reduce noise on closing. The base is corrosion-resistant, fitted with leveling feet and prepared for anchoring to a concrete foundation.

Usage features
Each compartment is equipped with two IP55 sockets (230 V, 16 A) with surge protection. Sockets in upper compartments are slightly offset downwards for improved accessibility. Four service compartments are located at the bottom of the unit. The standard locking system for the service compartments is a cylinder lock supplied with two keys; a master key for emergency opening is included. Installation template and usage stickers are provided.

Quality features

• Robust galvanized steel construction (body: 1.0 mm; doors: 1.5 mm)
• Designed for outdoor, weather-resistant storage and charging
• Compartments with double sockets (IP55, 230 V, 16 A) and surge protection
• Double-walled doors with magnetic closure and rubber bumpers
• Corrosion-resistant base with leveling feet and anchor points

Assembly instructions
The unit must be mounted on a stable concrete foundation of minimum dimensions 166 x 62 cm (recommended depth: 50 cm). Route a three-core supply cable (min. cross-section 2.5 mm²) through the center conduit of the foundation. A drilling template for anchoring is included; detailed installation steps are provided in the operating manual.

Technical specifications

• Number of doors: 16
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: Cylinder lock, 2 keys
• Charging port: F-type (Schuko) plug, 230 V, 16 A
• Sockets protection rating: IP55
• Material: Galvanized steel sheet
• Sheet thickness body: 1.0 mm
• Sheet thickness door: 1.5 mm
• Overall height: 215 cm
• Overall width: 166 cm
• Overall depth: 63 cm
• Weight: 440 kg
