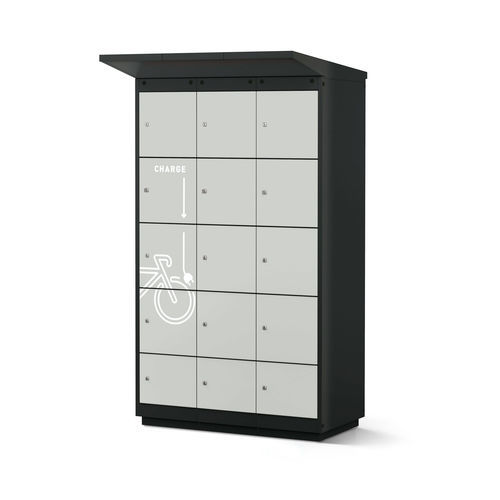

Electric bike charging station 2663-030500-1201114_V.1603

for electric scootergalvanised steelsecure

Product overview
The LOCKEEL® e-bike charging station is designed for secure outdoor storage and simultaneous charging of batteries for e-bikes, pedelecs, electric scooters and technical equipment. It offers 12 compartments, each fitted with two protected F-type sockets (IP54, 230 V, 16 A) and surge protection. Upper compartments feature slightly lowered sockets for improved accessibility. A lockable service compartment and a master emergency key are included.

Construction and protection
The housing is manufactured from moisture- and weather-resistant galvanized steel sheet with a UV-resistant stove-enamel finish. Double-walled doors provide dust- and moisture-protected storage and close flush with a magnetic catch. Doors are fitted with rubber bumpers to reduce noise. The rust- and weather-resistant base includes leveling feet and is prepared for secure anchoring to the foundation.

Charging and compartments
Each of the 12 compartments contains two IP54 F-type sockets (230 V, 16 A) with overvoltage protection. Sockets in upper compartments are offset for ergonomic access. The station includes three service compartments positioned below the charging columns. A master key for emergency opening is supplied as standard.

Quality features

• Robust construction: body sheet 1.0 mm; doors 1.5 mm
• Designed for e-bikes, pedelecs and electric scooters
• Weather-resistant storage and charging for outdoor installation
• Noise-reducing door bumpers and secure magnetic closing

Assembly instructions
Install the charging station on a stable concrete foundation with minimum dimensions 126 x 62 cm and recommended depth 50 cm. A cable conduit with connection cable (three-core, min. cross-section 2.5 mm²) must be routed through the centre of the foundation. A drilling template for anchoring is included; see the operating instructions for detailed installation guidance.

Technical specifications

• Number of doors: 12
• Compartment depth: 60 cm
• Tray height: 36.9 cm
• Tray width: 40 cm
• Locking system: Cylinder lock, 2 keys (service compartment fitted with cylinder lock as standard)
• Charging port: F-type plug (2 sockets per compartment), IP54, 230 V, 16 A with surge protection
• Material: Galvanized steel sheet
• Sheet thickness body: 1.0 mm
• Sheet thickness door: 1.5 mm
• Height: 215 cm
• Depth: 63 cm
• Width: 126 cm
• Weight: 350 kg
• Base: Corrosion-resistant, leveling feet, base predrilled for anchoring
• Required fixing: Concrete foundation 126 x 62 cm (recommended depth 50 cm)
