Water pump GHV
with electric motormetal

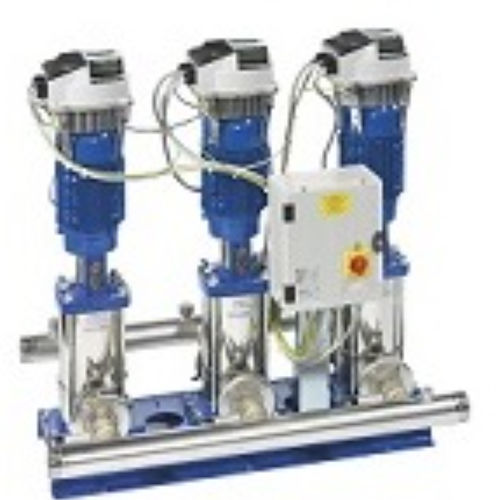

Water pump - GHV - LOWARA - with electric motor / metal

Water pump - GHV - LOWARA - with electric motor / metal - image - 2

Water pump - GHV - LOWARA - with electric motor / metal - image - 3

Water pump - GHV - LOWARA - with electric motor / metal - image - 4

Water pump - GHV - LOWARA - with electric motor / metal - image - 5

Water pump - GHV - LOWARA - with electric motor / metal - image - 6

Water pump - GHV - LOWARA - with electric motor / metal - image - 7

Add to favorites

Compare this product

Characteristics

Fluid: water
Operation: with electric motor
Material: metal

Description

Overview
This CAD center page lists GHV series booster sets and provides model entries with configuration details and downloadable CAD files (2D/3D). Each model entry typically includes service pump count, service pump series, hydraulic variant, non-return valve position and control panel power supply. Many models include 2D and 3D previews.

Model codes and key configuration
The GHV model codes embed key configuration data: number group / service pump hydraulics / control panel code. Representative examples:

GHV10/5SV11F015T/2/PMA — Number of service pumps: 10 (= 1 service pump); Service pump series: e-SV; Hydraulics: 5SV; Non-return valve: delivery side; Control panel: /2 = Single-phase 1 x 230 V
GHV10/10SV04F015T/4/PMA — Number of service pumps: 10 (= 1 service pump); Service pump series: e-SV; Hydraulics: 10SV; Non-return valve: delivery side; Control panel: /4 = Three-phase 3 x 400 V
GHV20/10SV02F007T/2 — Number of service pumps: 20 (= 2 service pumps); Service pump series: e-SV; Hydraulics: 10SV; Non-return valve: delivery side; Control panel: /2 = Single-phase 1 x 230 V

Available document types (per model)

2D (.dxf) — downloadable ZIP packages referenced per model
3D (.stp) — downloadable ZIP packages referenced per model
2D preview PNG
3D preview (web/3D viewers)

Notes
All CAD downloads are provided as ZIP archives containing CAD data; many models include PNG previews and viewer-based 3D previews. The page does not display product pricing or EAN codes.

Technical specifications

Series: GHV
Product type: booster sets / pump sets (GHV series)
Number of service pumps: filter options shown include 10 (1 service pump), 20 (2 service pumps), 30 (3), 40 (4)
Service pump series: e-SV
Hydraulics options: 3SV, 5SV, 10SV, 15SV, 22SV, etc.
Position of non-return valve: delivery side (standard shown)
Control panel power supply codes: /2 = Single-phase 1 x 230 V; /4 = Three-phase 3 x 400 V
Available CAD formats per model: 2D (.dxf in ZIP), 3D (.stp in ZIP), PNG previews, 3D viewer previews
