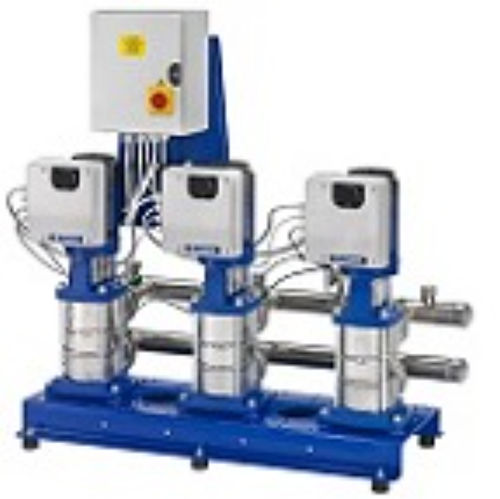

Water pump SMB-UKwith electric motormetal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Material
- metal
Description
Product overview
Key variants (examples)
Document types
Technical specifications
Downloads & notes
- CAD/BIM package for SMB-UK booster set configurations intended for engineering, design and integration tasks.
Key variants (examples)
- SMB10/10HME01S07/M2/UK — 10 service pumps; series e-HME; hydraulics 10HME; control panel [M2] = Single-phase 1 x 230 V
- SMB10/10HME01S07/T4/UK — same hydraulics with [T4] = Three-phase 3 x 400 V
- SMB10/10SVE01F005/M2/UK — 10 service pumps; series e-SVE; hydraulics 10SVE; [M2] = Single-phase
- SMB10/15HME02S15/M2/UK and SMB10/15HME02S15/T4/UK — 15HME hydraulics, single- or three-phase options
- Examples of smaller hydraulics: SMB10/1HME05S03, SMB10/1HME08S05 (available M2/T4)
- e-SVE single-pump examples: SMB10/1SVE05F003, SMB10/1SVE15F011 (PN25 variants available)
Document types
- 2D CAD (.dxf)
- 3D CAD (.stp)
- BIM (Revit) (.rfa)
- 2D preview images (PNG)
- 3D preview files
Technical specifications
- Series: SMB-UK
- Typical configuration: booster sets with multiple service pumps (examples use 10 service pumps as reference)
- Service pump series available: e-HME, e-SVE
- Hydraulics examples: 10HME, 10SVE, 15HME, 15SVE, 1HME, 1SVE, 22SVE, 20/26SVE (PN25 variants)
- Control panel power supply options: [M2] = Single-phase, 1 x 230 V; [T4] = Three-phase, 3 x 400 V
- Provided documentation: 2D (.dxf), 3D (.stp), BIM (.rfa) and preview images
Downloads & notes
- Each variant entry corresponds to CAD/BIM deliverables; many downloads are supplied as compressed archives grouped by file type.
- Variant codes indicate pump count, pump series, hydraulics and control panel power option.
- Use provided CAD/BIM files for integration into projects, layout checks and technical documentation.
