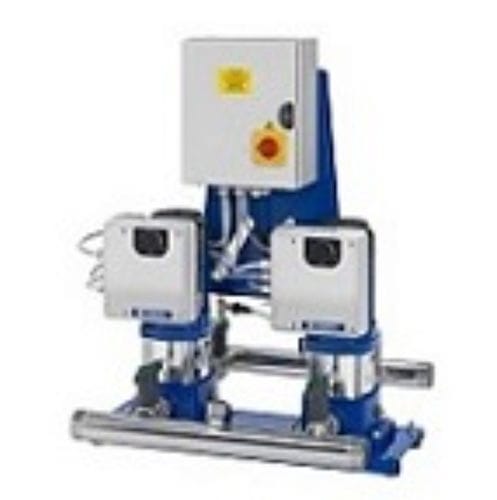

Water pump SMB series

with electric motormetal

Overview
The SMB series product pages provide CAD, 2D/3D and BIM deliverables for SMB booster set configurations. The listings show available configurations with key technical identifiers (service pump count, service pump series, hydraulic identifiers) and available CAD/BIM file types.

Products (examples listed on the page)

• SMB10/10SVE01F005/M2
• SMB10/10SVE01F005/T4
• SMB10/10SVE02F007/M2
• SMB10/10SVE02F007/T4
• SMB10/10SVE02F011/M2
• SMB10/10SVE02F011/T4
• SMB10/10SVE03F015/M2
• SMB10/10SVE03F015/T4
• SMB10/10SVE04F022/T4
• SMB10/15SVE01F007/M2
• SMB10/15SVE01F007/T4
• SMB10/15SVE01F011/M2
• SMB10/15SVE01F011/T4
• SMB10/15SVE02F015/M2
• SMB10/15SVE02F015/T4
• SMB10/15SVE02F022/T4
• SMB10/1HME05S03/M2
• SMB10/1HME08S05/M2
• SMB10/1HME11S07/M2
• SMB10/1HME15S11/M2
• SMB10/1HME17S15/M2
• SMB10/1SVE05F003/M2
• SMB10/1SVE05F003/T4
• SMB10/1SVE08F005/M2
• SMB10/1SVE08F005/T4
• SMB10/1SVE11F007/M2
• SMB10/1SVE11F007/T4
• SMB10/1SVE15F011/M2
• SMB10/1SVE15F011/T4

Table (product entries and key configuration)
The product codes encode the main configuration parameters: number of service pumps, service pump series and hydraulic identifier, plus control panel power supply.
Examples:

• SMB10/10SVE01F005/M2 — Number of service pumps: 10 = 1 service pump; Service pump series: e-SVE; Hydraulics: 10SVE; Control panel: [M2] = Single-phase, 1 x 230 V
• SMB10/10SVE01F005/T4 — same configuration with control panel: [T4] = Three-phase, 3 x 400 V

Available document types (per product entries)
Each product row lists available CAD/BIM deliverables such as 2D (.dxf), 3D (.stp), BIM (Revit .rfa), BIM (IFC .ifc) and 2D/3D preview images. Documents are provided per configuration; no PDF deliverables are shown on the page.

Technical specifications

• Series name: SMB
• Typical service pump grouping shown: 10 = 1 service pump (other groupings present elsewhere)
• Service pump series: e-SVE or e-HME depending on configuration
• Hydraulic identifiers include examples: 10SVE, 15SVE, 1HME, 3HME, 22SVE, 3SVE, 1SVE (varies by model)
• Control panel power supply options: [M2] = Single-phase, 1 x 230 V; [T4] = Three-phase, 3 x 400 V
• CAD/BIM deliverables: 2D (.dxf), 3D (.stp), BIM Revit (.rfa), BIM IFC (.ifc), plus 2D & 3D preview images
