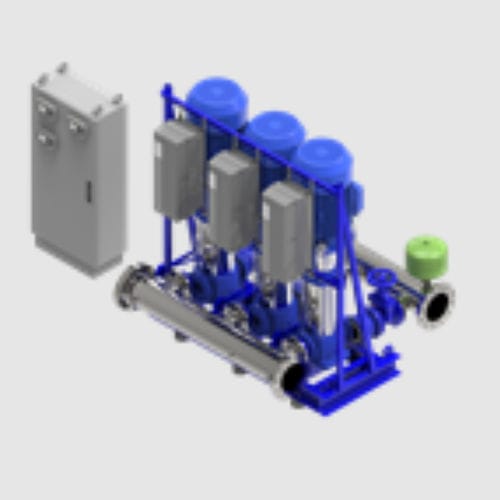

Water pump GHV HVX+

with electric motorstainless steel

Product
GHV HVX+ Smart Controller — Central‑North Europe. CAD center listing of multiple GHV HVX+ configurations with downloadable CAD and 3D resources for integration and installation planning.

Available configurations (summary)
Configurations include model prefixes GHV2, GHV3 and GHV4 corresponding to 20, 30 and 40 service pump allocations (2, 3 and 4 service pumps). Observed hydraulic codes include 125SV, 33SV, 46SV, 66SV and 92SV. Examples of model codes listed: GHV2/125SV4G/AA/Q1A/A1; GHV3/66SV6/1AG/AA/Q2A/A1; GHV4/92SV5/2AG/AA/Q1A/A1.

Document types available (per configuration)

• 2D (.dxf) downloadable ZIP packages
• 3D (.stp) downloadable ZIP packages
• 2D PNG previews
• 3D previews (3dm HTML/GZ)

Notes
Page lists CAD center entries (page 1 of 2) for multiple GHV HVX+ configurations targeted at Central‑North Europe. Files and previews are provided; no pricing, EAN or extended marketing description is included on the page.

Technical specifications

• Series: GHV HVX+ Smart Controller — Central‑North Europe
• Variant families: GHV2, GHV3, GHV4 with multiple hydraulic options and configuration suffixes
• Service pump options: 20 (2 service pumps), 30 (3 service pumps), 40 (4 service pumps)
• Hydraulics options observed: 125SV, 33SV, 46SV, 66SV, 92SV
• CAD/document formats: 2D (.dxf), 3D (.stp) as ZIP downloads; PNG previews; 3D preview HTML/GZ
• Catalog navigation: Page 1 of 2
