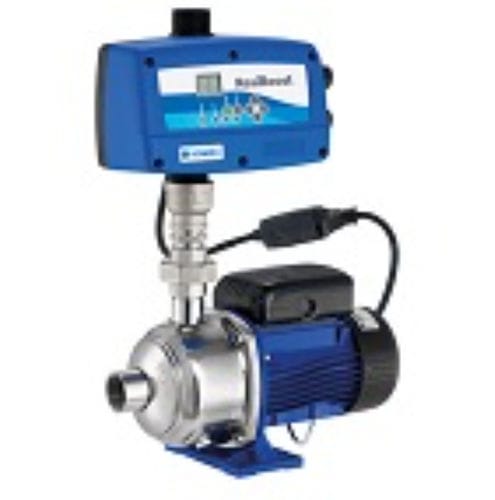

Water pump RESIBOOST series

with electric motormetal

Series
ResiBoost

Product table
Product name | Additional info | Document types available
RESIBOOST MMW09/1HM03P05M | Main Pump: e-HM; Pump Type: 1HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/1HM04P05M | Main Pump: e-HM; Pump Type: 1HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/1HM05P05M | Main Pump: e-HM; Pump Type: 1HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/1HM06P07M | Main Pump: e-HM; Pump Type: 1HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/3HM03P05M | Main Pump: e-HM; Pump Type: 3HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/3HM04P05M | Main Pump: e-HM; Pump Type: 3HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/3HM05P07M | Main Pump: e-HM; Pump Type: 3HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/3HM06P11M | Main Pump: e-HM; Pump Type: 3HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/5HM02P05M | Main Pump: e-HM; Pump Type: 5HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/5HM03P05M | Main Pump: e-HM; Pump Type: 5HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/5HM04P07M | Main Pump: e-HM; Pump Type: 5HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/5HM05P11M | Main Pump: e-HM; Pump Type: 5HM; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/BGM11 | Main Pump: BG; Pump Type: BGM11; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/BGM3 | Main Pump: BG; Pump Type: BGM3; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/BGM5 | Main Pump: BG; Pump Type: BGM5; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/BGM7 | Main Pump: BG; Pump Type: BGM7; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/CEAM120/3 | Main Pump: CEA; Pump Type: CEAM120; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/CEAM120/5 | Main Pump: CEA; Pump Type: CEAM120; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/CEAM70/3 | Main Pump: CEA; Pump Type: CEAM70; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/CEAM70/5 | Main Pump: CEA; Pump Type: CEAM70; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available
RESIBOOST MMW09/CEAM80/5 | Main Pump: CEA; Pump Type: CEAM80; Pump Phase: 1; Motor Power Supply: M: single-phase 1x230Vac | 2D (.dxf) available; 3D (.stp) available; 2D and 3D previews available

Available documentation (types)

• 2D drawings: .dxf (available per model)
• 3D models: .stp (available per model)
• 2D preview images (PNG) and 3D preview pages (3D viewer) available for each model

Technical characteristics / specifications

• Series name: ResiBoost
• Main pumps used: e-HM, BG, CEA (depends on model)
• Pump types available: 1HM, 3HM, 5HM, BGM11, BGM3, BGM5, BGM7, CEAM120, CEAM70, CEAM80
• Pump phase: 1 (single-phase) for listed models
• Motor power supply notation: M: single-phase 1x230Vac (specified for all listed models)
• Files available per model: 2D (.dxf) and 3D (.stp); previews in 2D PNG and 3D preview pages
