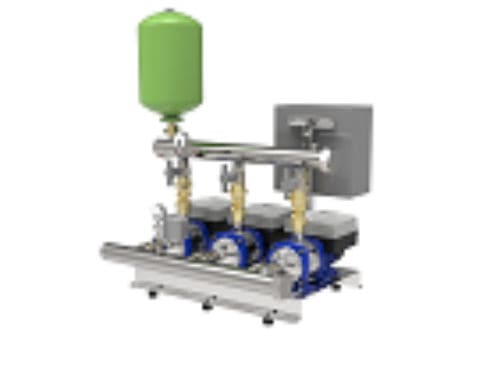

Water pump SMB series

electricmetal

Overview:

The CAD models listed correspond to the SMB series (Central‑North Europe) and cover multiple SMB10 and SMB15 configurations. Files are provided for product planning and integration and represent variants with different service pump hydraulics, control panel power supplies and construction materials.

Available configurations:

• SMB10/10HME02S11/2/CB/PMA and SMB10/10HME02S11/4/CB/PMA — e‑HME hydraulics, CB construction, single‑phase (/2) or three‑phase (/4)
• SMB10/10HME02S11/2/CX/PMA and SMB10/10HME02S11/4/CX/PMA — e‑HME hydraulics, CX construction, single‑phase or three‑phase
• SMB10/10HME01S07/... and SMB10/10HME03S15/... and SMB10/10HME04S22/... — additional e‑HME hydraulic options with CB or CX construction
• SMB10/10SVE01F005, SMB10/10SVE02F007, SMB10/10SVE02F011, SMB10/10SVE03F015, SMB10/10SVE04F022 — e‑SVE series, each available in /2 and /4, CB and CX
• SMB10/15HME01S11, SMB10/15HME02S15, SMB10/15HME03S22 and SMB10/15SVE... — SMB15 variants with e‑HME or e‑SVE hydraulics

Technical specifications:

• Series name: SMB (Central‑North Europe)
• Service pump count indicator shown in codes: e.g. "10" typically denotes configuration with 1 service pump
• Service pump series: e‑HME and e‑SVE (depends on model)
• Hydraulic codes: 10HME, 10SVE, 15HME, 15SVE, 1HME, 1SVE, 22SVE, 3HME, 3SVE, 5HME, 5SVE (varies by variant)
• Control panel power supply: /2 = Single‑phase, 1 x 230 V; /4 = Three‑phase, 3 x 400 V
• Construction material options: CB version or CX version

CAD resources and documentation:

Available document types for each product variant typically include 2D (.dxf), 3D (.stp) and preview images (2D preview, 3D preview). These resources support design integration and BOM preparation.

Notes:

Model codes encode pump series, hydraulics, power supply and construction material—verify the exact variant code when downloading CAD files. No PDF datasheets are shown in the provided page content.
