Electric underfloor heating 100305

residentialcommercialfor concrete floors

Product overview

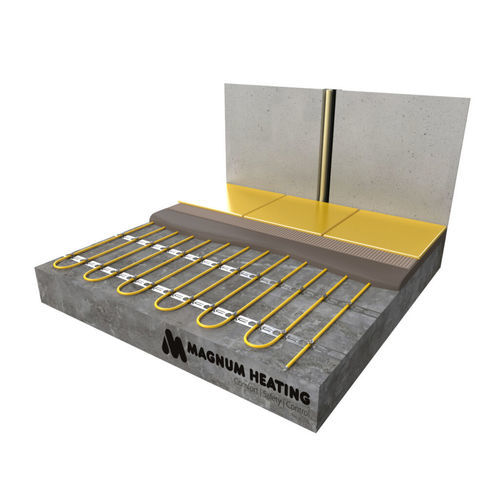

The MAGNUM Cable is an electric heating cable engineered for installation in cement screeds. Cable spacing determines power per m², enabling higher power for faster response and higher surface temperatures or lower power for constant/low-temperature applications. The cable is flexible for straightforward installation and can be fixed to MAGNUM Isorol or dovetailed sheets with aluminium tape or to concrete mesh with tie-wraps. Spacer strips are available for direct floor mounting.

Installation methods
Two linear power versions are available: 10 W/m and 17 W/m. The 10 W/m cables are supplied in total powers from 100 to 1900 W, covering approximate floor areas of 1–20 m². The 17 W/m cables are supplied in total powers from 300 to 3300 W, covering approximate floor areas of 2–30 m². Each heating cable is looped at the end so the power feed is on one side only; this unique blind connection removes the need for a return to the thermostat. MAGNUM Cable is not suitable for use in lightweight concrete.

Additional notes
An advanced WiFi thermostat compensates for warm-up time so the floor reaches the required temperature when needed. Eliminating wall radiators provides layout freedom where primary heating allows.

Example calculations cable distance
To calculate cable spacing: divide the free floor area (m²) by the total cable power (W), then multiply the result by the linear wattage (10 or 17 W/m). The first two digits after the decimal indicate spacing in centimetres.

Examples:
500 W on 3 m² → (3 ÷ 500) × 17 = 0.102 → 10 cm spacing
1000 W on 7 m² → (7 ÷ 1000) × 17 = 0.119 → 11–12 cm spacing

Package contents

• Heating cable
• Mounting tape
• Flexible tube for floor sensor
• Installation instructions

MAGNUM Cable 17 (Set) — selection

• Art.nr. 100305 / 110305 — 17.6 m — 300 W — 1.3 A — 177 Ω
• Art.nr. 100505 / 110505 — 29.4 m — 500 W — 2.2 A — 109 Ω
• Art.nr. 100705 / 110705 — 41.2 m — 700 W — 3.0 A — 76 Ω
• Art.nr. 101005 / 111005 — 58.8 m — 1000 W — 4.3 A — 53 Ω
• Art.nr. 101255 / 111255 — 73.5 m — 1250 W — 5.5 A — 42 Ω
• Art.nr. 101705 / 111705 — 100.0 m — 1700 W — 7.4 A — 31 Ω
• Art.nr. 102105 / 112105 — 123.5 m — 2100 W — 9.0 A — 25 Ω
• Art.nr. 102605 / 112605 — 152.9 m — 2600 W — 11.3 A — 20 Ω
• Art.nr. 102905 / 112905 — 170.6 m — 2900 W — 12.8 A — 18 Ω
• Art.nr. 103305 / 113305 — 194.1 m — 3300 W — 14.3 A — 16 Ω

MAGNUM Cable 17 W/m (Single)

• Art.nr. 120300 — 17.6 m — 300 W — 1.3 A — 177 Ω
• Art.nr. 120500 — 29.4 m — 500 W — 2.2 A — 109 Ω
• Art.nr. 120700 — 41.2 m — 700 W — 3.0 A — 76 Ω
• Art.nr. 121000 — 58.8 m — 1000 W — 4.3 A — 53 Ω
• Art.nr. 121250 — 73.5 m — 1250 W — 5.5 A — 42 Ω
• Art.nr. 121700 — 100.0 m — 1700 W — 7.4 A — 31 Ω
• Art.nr. 122100 — 123.5 m — 2100 W — 9.0 A — 25 Ω
• Art.nr. 122600 — 152.9 m — 2600 W — 11.3 A — 20 Ω
• Art.nr. 122900 — 170.6 m — 2900 W — 12.8 A — 18 Ω
• Art.nr. 123200 — 194.1 m — 3300 W — 14.3 A — 16 Ω

MAGNUM Cable 10 W/m (Single)

• Art.nr. 120107 — 10 m — 100 W — 0.4 A — 529 Ω
• Art.nr. 120207 — 20 m — 200 W — 0.9 A — 264 Ω
• Art.nr. 120307 — 30 m — 300 W — 1.3 A — 176 Ω
• Art.nr. 120407 — 40 m — 400 W — 1.7 A — 132 Ω
• Art.nr. 120507 — 50 m — 500 W — 2.2 A — 106 Ω
• Art.nr. 120607 — 60 m — 600 W — 2.6 A — 88 Ω
• Art.nr. 120807 — 80 m — 800 W — 3.5 A — 66 Ω
• Art.nr. 121007 — 100 m — 1000 W — 4.3 A — 53 Ω
• Art.nr. 121207 — 120 m — 1200 W — 5.2 A — 44 Ω
• Art.nr. 121507 — 150 m — 1500 W — 6.5 A — 35 Ω
• Art.nr. 121907 — 190 m — 1900 W — 8.3 A — 28 Ω

Options / Accessories

• Art.nr. 720100 — MAGNUM Stabiliser fibres — Bag 150 g
• Art.nr. 720150 — MAGNUM Aluminium tape — Roll 10 m × 5 cm
• Art.nr. 720310 — MAGNUM Spacer strips — 10 m
• Art.nr. 720315 — MAGNUM Spacer strips — 15 m
• Art.nr. 720400 — MAGNUM Edge strips — Roll 10 m × 10 cm
• Art.nr. 720502 — MAGNUM Isorol — Roll 24 m², 3 mm

Specifications (summary)

• System type: Electric
• System height: 7 mm
• System width: Variable
• Min. setting height: 30 mm
• Installation: Screed
• Linear power 17 W/m: 115–200 W/m²
• Linear power 10 W/m: 60–115 W/m²
• Suitable for wet areas, tiles, wood, (PVC) laminate, carpet: Approved
• Certifications: CE, VDE
• Warranty: Lifetime* (electromechanical part)
