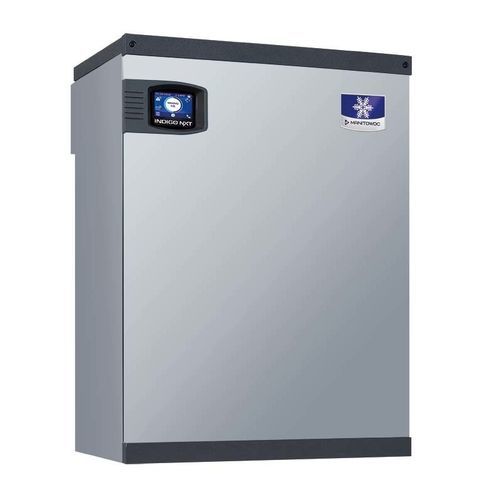

Modular ice cube maker IBT1020C

commercialhalf cuberemote cooling

Product name
Indigo NXT Series Ice/Beverage Series 1020C Remote Ice Cube Machine (Model IBT1020C) with Patented CVD Technology®

Overview
The IB Series QuietQube® remote system pairs an ice machine head with a remote condensing unit and interconnecting refrigerant lines. Countertop dispensers or ice storage bins are ordered separately. Designed for commercial beverage and foodservice environments where quiet, programmable and space-saving ice production is required.

Key features

• Acoustical ice sensing probe
  • Patented probe technology enables reliable sensing and operation under variable water conditions and in challenging environments.
• Optional LuminIce® II growth inhibitor
  • Reduces bacterial and yeast growth inside the food zone; display indicator shows treatment status.
• Commercial warranty
  • Ice Maker: 3 years parts and labor
  • Evaporator: 5 years parts and labor
  • Compressor: 5 years parts, 3 years labor
• DuraTech® exterior
  • Enhanced corrosion resistance with a stainless finish and clear-coat to resist fingerprints and dirt.
• Easy-to-clean food zone
  • Lift-off front door and removable components (water trough, distribution tube, curtain, water probe, pump) for fast sanitation. Selected parts include AlphaSan® antimicrobial.
• easyTouch® display
  • Icon-based touchscreen simplifies operation and status reading.
• Intelligent diagnostics
  • 24-hour preventative maintenance alerts and diagnostic feedback for reliable, trouble-free operation.
• Programmable ice production
  • Schedule off-times or set daily ice volume to match demand and reduce energy costs.
• Quiet operation
  • Reduced refrigeration noise for a more pleasant environment in beverage service areas.
• Space-saving design
  • Compact 22" x 14" footprint supports up to 1150 lb (522 kg) daily production, eases sanitation around storage and dispenser valves, and allows manual loading into dispensers during peaks.
  • Dimensions: 22" (55.88 cm) W x 14" (35.56 cm) D x 30.5" (77.50 cm) H.

Accessories

• LuminIce® II virus and bacteria inhibitor
  • Controls viruses, bacteria, mold and yeast within the food zone to extend cleanliness intervals.

Warranty Summary

• Ice Maker: 3 Year Parts and Labor
• Evaporator: 5 Year Parts and Labor
• Compressor: 5 Year Parts and 3 Year Labor

Technical specifications

• Model: IBT1020C
• Width x Depth x Height: 22" x 14" x 30.5" (55.9 cm x 35.6 cm x 77.5 cm)
• Weight: 148 lb (67.1 kg)
• Power input type: Electric
• Primary power input: 115-120 V, 60 Hz, 1 PH
• Energy use: 4.5 kWh / 100 lb ice
• Production capacity: Up to 1150 lb (522 kg) / day
• Certifications: AHRI, AutoQuotes, CA Low Lead, CE, CUL, NSF
• Category: Modular
• Attribute: halfdicecube
• Brand: mii (Manitowoc)
