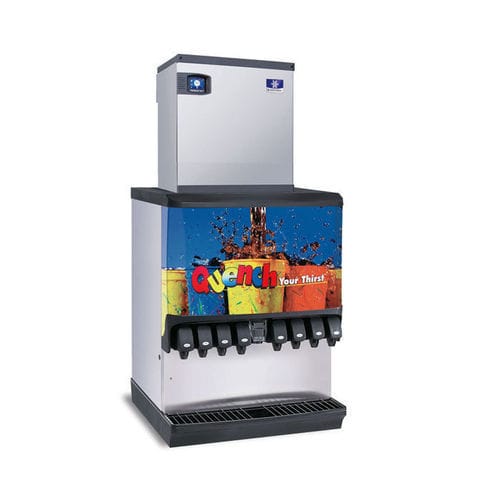

Countertop ice cube maker IBF0620C

for restaurantfor barfor commercial kitchen

Product Overview
IB Series QuietQube® Remote System consists of a remote condensing unit, interconnecting refrigerant lines, ice machine head section along with a countertop dispenser or ice storage bin. All ordered separately.

Key technology
with Patented CVD Technology® (Indigo NXT platform improvements and controls).

Features

• Acoustical Ice Sensing Probe
  • Unique patented technology allows for reliable operation in challenging water conditions and environments.
• Available LuminIce II Growth Inhibitor
  • Controls the growth of bacteria and yeast within the food zone to keep the machine cleaner longer. New indicator in the display provides operation status.
• Commercial Warranty
  • Ice Maker - 3 Year Parts & Labor
  • Evaporator - 3 Years Parts & Labor
  • Compressor - 5 Year Parts & 3 Years Labor
• DuraTech™ Exterior
  • Provides superior corrosion resistance. Stainless finish with innovative clear-coat resists fingerprints and dirt.
• Easy to Clean Foodzone
  • Lift-off front door for easy access. Removable water-trough, distribution tube, curtain, and sensing probes for fast and efficient cleaning. Select components made with AlphaSan® antimicrobial.
• easyTouch® display
  • New icon-based display simplifies ownership and operation.
• Intelligent Diagnostics
  • Provides 24-hour preventative maintenance and diagnostic feedback for trouble-free operation.
• Programmable Ice Production
  • Programmable to be off at certain times of day or by daily ice production volume to save energy.
• Quiet Operation
  • Eliminates most noise from the refrigeration system; promotes a relaxing atmosphere.
• Space-Saving Design
  • Up to 675 lbs (≈306 kg) daily ice production in a narrow 22" footprint to ease sanitation procedures and beverage valve access.
  • Allows convenient manual loading of ice in dispenser to satisfy peak ice usage.
  • Can be installed or retrofitted to virtually any commercial beverage dispenser.
  • Published dimensions vary by reference; see Technical Specifications block for listed model dimensions.

Technical specifications (from product page)

IBF0620C
W x D x H: 22" x 14" x 24" (55.9 cm x 35.6 cm x 61 cm)
Weight: 122 lb (55.3 kg)
Power Output: N/A
Power Input Type: Electric
Primary Power Input: 115-120 V x 60 Hz x 1 PH
Energy Use: 5.79 (value as listed on page; unit not specified)
Certifications: AHRI; AutoQuotes; CA Low Lead; CUL; ISO 9001:2008; NSF

Notes

• Remote QuietQube® system consists of multiple separately ordered components (remote condensing unit, interconnecting refrigerant lines, head section, dispenser or storage bin).
• Some marketing/spec pages mention slightly different height values for related variants—refer to the model-specific specification sheet for installation clearance and exact dimensions.

Characteristics / Technical specifications

• Model: IBF0620C
• Series: Indigo NXT Ice/Beverage Series 620C (QuietQube® remote)
• Daily ice production (series note): up to 675 lbs / ≈306 kg (space-saving footprint claim)
• Dimensions (W x D x H): 22" x 14" x 24" (55.9 x 35.6 x 61 cm)
• Weight: 122 lb / 55.3 kg
• Primary Power: 115-120 V, 60 Hz, 1 PH
• Power Input Type: Electric
• Energy use: 5.79 (value listed on page)
• Exterior finish: DuraTech™ stainless with clear-coat
• Foodzone: Lift-off front door; removable water trough and distribution components; AlphaSan® antimicrobial components available
• Controls: easyTouch® icon-based display; programmable production; intelligent diagnostics
• Hygiene option: LuminIce® II virus & bacteria inhibitor available
• Warranty: Ice maker 3 years parts & labor; Evaporator 3 years parts & labor; Compressor 5 years parts & 3 years labor
• Certifications: AHRI, AutoQuotes, CA Low Lead, CUL, ISO 9001:2008, NSF
