Vitroceramic induction cooktop POWER HOB 6 KW

for commercial kitchen1 burnerbuilt-in

Overview
Induction hobs convert electrical energy into heat directly in the cookware via an electromagnetic field. Heat is produced only where a compatible pan is present, enabling rapid heating and lowering stray heat in professional kitchens.

Key features

• Patented SLIDECONTROL (slide regulation) on many models
• Pan detection (material, diameter, load characteristics)
• Control electronics with latest processor technology
• Self-diagnosis system for fault detection and signalling
• Multi-segment or zone information displays

Benefits

• Accurate, stepless power control for process repeatability
• Automatic adaptation of power to pan type and size
• Fast response and freely adjustable output for production peaks
• Enhanced operational reliability through continuous monitoring
• Clear status feedback via multi-segment/zone displays

Models and product details
Eco induction hob 3.5 kW
Single-zone unit with Eco round coil and SLIDECONTROL. Suited to high-power short operations with a single pan.

• Suitable for pans up to 28 cm
• Active range: Ø 260 mm
• Central pot detection and temperature monitoring

Specifications:
Glass dimensions: 388 x 388 mm
Output: 3.5 kW
Connector: 1x 230 VAC
Control: 1 control unit
Monitoring: Central temperature monitoring
Hobs: 1x Eco round coil, Range 260 mm
Adjustment: Freely adjustable power control

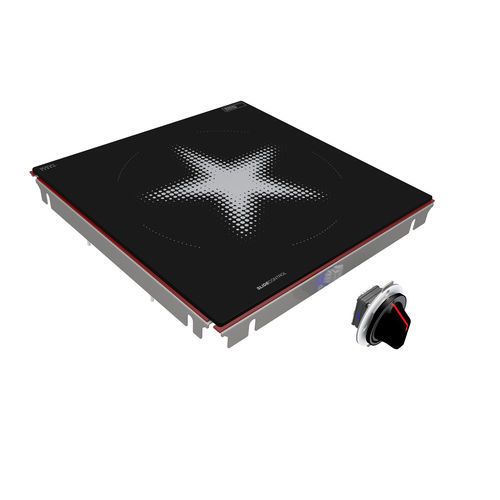

Power induction hob 6 kW
Single-zone unit with Power round coil and SLIDECONTROL. Designed for short, high-power operations.

• Suitable for pans up to 32 cm
• Active range: Ø 300 mm
• Central pot detection and temperature monitoring

Specifications:
Glass dimensions: 388 x 388 mm
Output: 6.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: Central temperature monitoring
Hobs: 1x Power round coil, Range 300 mm
Adjustment: Freely adjustable power control

Multifunctional hob 7 kW
Versatile unit with multifunctional cooking zone (7.0 kW). Suitable for simultaneous use of multiple pans and for production/finishing tasks.

• Capacity: four 16 cm sauté pans or one pot up to 38 cm
• Active range: 340 × 360 mm
• 2-zone pot detection and temperature monitoring

Specifications:
Glass dimensions: 388 x 388 mm
Output: 7.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: 2-zone temperature monitoring
Hobs: 1x multifunctional hob, Range 340 × 360 mm
Adjustment: Freely adjustable power control

Full-coverage large induction hob 9 kW
Full-coverage zone delivering even heat distribution for several small pans or large cookware; precise power metering.

• Capacity: four 20 cm sauté pans or one pot up to 40 cm
• Active range: 380 × 380 mm
• Central pot detection and temperature monitoring

Specifications:
Glass dimensions: 388 x 388 mm
Output: 9.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: Full-coverage temperature monitoring
Hobs: Full-coverage large hob, Range 380 × 380 mm
Adjustment: Freely adjustable power control

Double Eco hob 2x3.5 kW
Two Eco round coils with independent controls; for operations requiring two single pans.

• Ideal for pans up to 28 cm
• Active range: Ø 260 mm each
• Central pot detection and temperature monitoring

Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 3.5 kW
Connector: 1x 230 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2x Eco round coils, Range 260 mm
Adjustment: Freely adjustable power control

Double Power hob 2x6 kW
Two Power round coils with SlideControl; for two pans requiring high power bursts.

• Suitable for pans up to 32 cm
• Active range: Ø 300 mm each
• Central pot detection and temperature monitoring

Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 6.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2x Power round coils, Range 300 mm
Adjustment: Freely adjustable power control

Double multifunctional hobs 2x7 kW
Two multifunctional zones (2 x 7.0 kW) for flexible multi-pan production.

• Each zone: four 16 cm sauté pans or one pot up to 38 cm
• Active range: 340 × 360 mm each
• 2-zone pot detection and temperature monitoring per zone

Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 7.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: 2-zone temperature monitoring
Hobs: 2x multifunctional hobs, Range 340 × 360 mm each
Adjustment: Freely adjustable power control

Double large hob 2x9 kW
Two full-coverage large hob zones (2 x 9.0 kW) for high pan capacity and even distribution.

• Each zone: four 20 cm sauté pans or one pot up to 40 cm
• Active range: 380 × 380 mm each
• Central pot detection and temperature monitoring

Specifications:
Dimensions: 388 x 788 mm
Output: 2 x 9.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2 x full-coverage large hobs, Range 380 × 380 mm
Adjustment: Freely adjustable power control

Double SlideControl hobs 2x3.5 kW
Two SLIDECONTROL zones intended for à-la-carte cooking with two pans; automatic temperature monitoring.

• Suitable for frying pans up to 18 cm each
• Active range: Ø 200 mm each
• Central pot detection and automatic temperature monitoring

Specifications:
Glass dimensions: 226 x 388 mm
Output: 2 x 3.5 kW
Connector: 400 VAC
Control: 2 controls
Monitoring: Automatic temperature monitoring
Hobs: 2x SLIDECONTROL hobs, Range 200 mm each
Adjustment: Freely adjustable power control

Triple SlideControl hob 3x3.5 kW
Three SLIDECONTROL zones for simultaneous use of three pans; compact layout for production lines.

• Suitable for pans up to 18 cm in diameter
• Active range: Ø 200 mm each
• Central pot detection and temperature monitoring

Specifications:
Glass dimensions: 266 x 688 mm
Output: 3 x 3.5 kW
Connector: 400 VAC
Control: 3 controls
Monitoring: Automatic temperature monitoring
Hobs: 3x SLIDECONTROL hob zones, Range 200 mm each
Adjustment: Freely adjustable power control

Multifunctional hob MS-I-40M (4 zones, 4 x 7.0 kW)
Compact induction unit with four multifunction cooking zones for intensive production and preparation tasks.

• Capacity: 4 × sauté pans Ø 16 cm or pots up to Ø 38 cm
• Active area per zone: 320 × 320 mm
• 4 × dual-zone pan detection and temperature monitoring

Specifications:
Glass dimensions: 660 x 660 mm
Output: 4 x 7.0 kW
Connector: 3x 400 VAC
Control: 4 controls
Monitoring: 4 × dual-zone temperature monitoring
Hobs: 4 × multifunction cooking zones (active area 320 × 320 mm)
Adjustment: Stepless power control

Technical specifications

• User interface: Patented SLIDECONTROL (slide regulation) on many models
• Pan detection: central, 2-zone or full-coverage depending on model (detects material, size, power consumption)
• Temperature monitoring: central, 2-zone, automatic or full-coverage (model dependent)
• Control: 1–4 control units depending on model; latest processor technology for fast, adjustable control
• Monitoring & safety: self-diagnosis system for fault detection and signalling
• Power range: single hobs from 3.5 kW up to 9.0 kW; multi-zone assemblies combine outputs
• Connector options: 1x 230 VAC, 400 VAC, 3x 400 VAC (model dependent)
• Adjustment: Freely adjustable power control / stepless control on larger units
• Active area / ranges: from Ø 200 mm up to 380 × 380 mm or 320 × 320 mm (model dependent)
