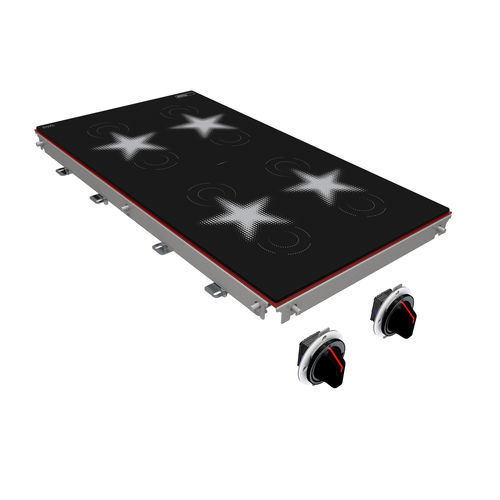

Induction cooktop 3940

for commercial kitchen4 burnerbuilt-in

Overview
Induction hobs generate heat directly in the pan via an electromagnetic field, providing rapid, efficient heating only when a pan is present. Models range from single-pan units to multi-zone systems for professional production kitchens.

Benefits

• Patented SLIDECONTROL technology
• Pan detection (material, diameter, power characteristics)
• Control electronics based on modern processor technology
• Self-diagnosis system for error detection and signalling
• Multi-segment status display

Advantages

• Intuitive stepless power regulation
• Optimal induction adaptation to pan type
• Fast, freely adjustable control
• Improved operational reliability via self-diagnosis
• Continuous status feedback (multi-segment display)

Product family and technology highlights
Patented SLIDECONTROL for intuitive power adjustment; central, dual-zone or full-coverage pot detection and temperature monitoring depending on model; stepless power control; variants from single-pan flash cooking to multi-zone production cooking.

Models and intended use

• Eco induction hob 3.5 kW – Single-pan induction unit with Eco round coil and SLIDECONTROL. Designed for one-pan cooking, flash frying and bulk cooking; suitable for pans up to 28 cm; effective range 260 mm; central pot detection and temperature monitoring.
• Power induction hob 6 kW – Single-pan induction unit with Power round coil and SLIDECONTROL. For single-pan high-power cooking; suitable for pans up to 32 cm; effective range 300 mm; central pot detection and temperature monitoring.
• Multifunctional hob 7 kW – Multi-use induction unit (7.0 kW) for two to four pans; accommodates four 16 cm sauté pans or one pan up to 38 cm; active area 340 × 360 mm; 2-zone pot detection and temperature monitoring.
• Full-coverage large induction hob 9 kW – Large full-coverage induction unit (9.0 kW) for multiple small pans or even heat distribution in a large pan; fits four 20 cm sauté pans or one pan up to 40 cm; active area 380 × 380 mm; central pot detection and temperature monitoring.
• Double and multiple variants – Double and multiple configurations available (examples: Double Eco 2×3.5 kW, Double Power 2×6 kW, Double multifunctional 2×7 kW, Double large 2×9 kW, Double SlideControl 2×3.5 kW, Triple SlideControl 3×3.5 kW, 4-zone multifunctional MS-I-40M 4×7.0 kW). Combinations provide per-zone control and monitoring corresponding to single-unit technologies.

Notes on controls & monitoring
Models use SLIDECONTROL or equivalent control units; control electronics employ modern processors for fast, stepless control; temperature monitoring is central, 2-zone, dual-zone or full-coverage depending on variant.

Caractéristiques / spécifications techniques

• Eco induction hob 3.5 kW — Glass dimensions: 388 x 388 mm; Output: 3.5 kW; Connector: 1x 230 VAC; Control: 1 control unit; Monitoring: Central temperature monitoring; Hobs: 1x Eco round coil (Range 260 mm); Adjustment: Freely adjustable power control.
• Power induction hob 6 kW — Glass dimensions: 388 x 388 mm; Output: 6.0 kW; Connector: 3x 400 VAC; Control: 1 control unit; Monitoring: Central temperature monitoring; Hobs: 1x Power round coil (Range 300 mm); Adjustment: Freely adjustable power control.
• Multifunctional hob 7 kW (single) — Glass dimensions: 388 x 388 mm; Output: 7.0 kW; Connector: 3x 400 VAC; Control: 1 control unit; Monitoring: 2-zone temperature monitoring; Hobs: 1x multifunctional hob (Range 340 × 360 mm); Adjustment: Freely adjustable power control.
• Full-coverage large induction hob 9 kW — Glass dimensions: 388 x 388 mm; Output: 9.0 kW; Connector: 3x 400 VAC; Control: 1 control unit; Monitoring: Full-coverage temperature monitoring; Hobs: Full-coverage large hob (Range 380 × 380 mm); Adjustment: Freely adjustable power control.
• Double Eco hob 2×3.5 kW — Dimensions: 356 x 656 mm; Output: 2 × 3.5 kW; Connector: 1x 230 VAC; Control: 2 controls; Monitoring: Central temperature monitoring; Hobs: 2x Eco round coils (Range 260 mm each); Adjustment: Freely adjustable power control.
• Double Power hob 2×6 kW — Dimensions: 356 x 656 mm; Output: 2 × 6.0 kW; Connector: 3x 400 VAC; Control: 2 controls; Monitoring: Central temperature monitoring; Hobs: 2x Power round coils (Range 300 mm each); Adjustment: Freely adjustable power control.
• Double multifunctional hobs 2×7 kW — Dimensions: 356 x 656 mm; Output: 2 × 7.0 kW; Connector: 3x 400 VAC; Control: 2 controls; Monitoring: 2-zone temperature monitoring; Hobs: 2x multifunctional hobs (Range 340 × 360 mm each); Adjustment: Freely adjustable power control.
• Double large hob 2×9 kW — Dimensions: 388 x 788 mm; Output: 2 × 9.0 kW; Connector: 3x 400 VAC; Control: 2 controls; Monitoring: Central temperature monitoring; Hobs: 2 × full-coverage large hobs (Range 380 × 380 mm each); Adjustment: Freely adjustable power control.
• Double SlideControl hobs 2×3.5 kW — Glass dimensions: 226 x 388 mm; Output: 2 × 3.5 kW; Connector: 400 VAC; Control: 2 controls; Monitoring: Automatic temperature monitoring; Hobs: 2x SLIDECONTROL hobs (Range 200 mm each); Adjustment: Freely adjustable power control.
• Triple SlideControl hob 3×3.5 kW — Glass dimensions: 266 x 688 mm; Output: 3 × 3.5 kW; Connector: 400 VAC; Control: 3 controls; Monitoring: Automatic temperature monitoring; Hobs: 3x SLIDECONTROL hob zones (Range 200 mm each); Adjustment: Freely adjustable power control.
• Multifunctional unit MS-I-40M (4 zones) — Glass dimensions: 660 x 660 mm; Output: 4 × 7.0 kW; Connector: 3x 400 VAC; Control: 4 controls; Monitoring: 4 × dual-zone temperature monitoring; Hobs: 4 × multifunction cooking zones (Active area per zone: 320 × 320 mm); Adjustment: Stepless power control.
