Induction cooktop MS-I-40M

professional8 burnerbuilt-in

Product overview
Induction hobs convert electrical energy into heat directly in the cookware via an electromagnetic field, enabling fast and localized heating. The MS-I-40M is a compact, production-capable unit with four multifunction cooking zones and stepless power control suitable for professional food preparation environments.

Benefits

• Patented SLIDECONTROL technology for direct zone adjustment
• Dual-zone pan detection: material, diameter and power characteristics
• Advanced control electronics with modern processor architecture
• Integrated self-diagnosis for fault detection and signalling
• Multi-segment displays for clear operational status

Operational advantages

• Precise, stepless regulation of cooking power
• Automatic adaptation of induction output to pan type for consistent results
• Fast response and freely adjustable control per zone
• Self-diagnosis to support high operational availability
• Multi-segment information display to monitor status at a glance

Highlighted single-zone models
Eco induction hob 3.5 kW
Single-zone unit with Eco round coil and SLIDECONTROL. Designed for single-pan high-power bursts such as rapid frying or processing larger volumes.
Specifications:
Glass dimensions: 388 x 388 mm
Output: 3.5 kW
Connector: 1x 230 VAC
Control: 1 control unit
Monitoring: Central temperature monitoring
Hobs: 1x Eco round coil, Range 260 mm
Adjustment: Freely adjustable power control

Power induction hob 6 kW
Single-zone unit with Power round coil and SLIDECONTROL for applications requiring sustained high power.
Specifications:
Glass dimensions: 388 x 388 mm
Output: 6.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: Central temperature monitoring
Hobs: 1x Power round coil, Range 300 mm
Adjustment: Freely adjustable power control

Multifunctional hob 7 kW (single)
Single multifunctional zone providing high power density for production and finishing tasks; suitable for 2–4 pans when paired in installations.
Specifications:
Glass dimensions: 388 x 388 mm
Output: 7.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: 2-zone temperature monitoring
Hobs: 1x multifunctional hob, Range 340 × 360 mm
Adjustment: Freely adjustable power control

Full-coverage large induction hob 9 kW
Single-zone full-coverage hob delivering even power distribution across a large active area for multiple small pans or large vessels.
Specifications:
Glass dimensions: 388 x 388 mm
Output: 9.0 kW
Connector: 3x 400 VAC
Control: 1 control unit
Monitoring: Full-coverage temperature monitoring
Hobs: Full-coverage large hob, Range 380 × 380 mm
Adjustment: Freely adjustable power control

Selected multi-zone and special configurations
Double Eco hob 2 x 3.5 kW
Two Eco round coils with independent controls for two separate pans.
Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 3.5 kW
Connector: 1x 230 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2x Eco round coils, Range 260 mm each
Adjustment: Freely adjustable power control

Double Power hob 2 x 6 kW
Two Power round coils for dual high-power applications.
Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 6.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2x Power round coils, Range 300 mm each
Adjustment: Freely adjustable power control

Double multifunctional hobs 2 x 7 kW
Two multifunctional zones for versatile production cooking.
Specifications:
Dimensions: 356 x 656 mm
Output: 2 x 7.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: 2-zone temperature monitoring
Hobs: 2x multifunctional hobs, Range 340 × 360 mm each
Adjustment: Freely adjustable power control

Double large hob 2 x 9 kW
Two full-coverage large hob zones for extensive pan capacity and even heat distribution.
Specifications:
Dimensions: 388 x 788 mm
Output: 2 x 9.0 kW
Connector: 3x 400 VAC
Control: 2 controls
Monitoring: Central temperature monitoring
Hobs: 2 x full-coverage large hobs, Range 380 × 380 mm each
Adjustment: Freely adjustable power control

SlideControl multi-zone variants
Double SlideControl hobs 2 x 3.5 kW
Double SLIDECONTROL zones for independent cooking with two pans.
Specifications:
Glass dimensions: 226 x 388 mm
Output: 2 x 3.5 kW
Connector: 400 VAC
Control: 2 controls
Monitoring: Automatic temperature monitoring
Hobs: 2x SLIDECONTROL hobs, Range 200 mm each
Adjustment: Freely adjustable power control

Triple SlideControl hob 3 x 3.5 kW
Triple SLIDECONTROL configuration for three-pan operation and flexible zone mapping.
Specifications:
Glass dimensions: 266 x 688 mm
Output: 3 x 3.5 kW
Connector: 400 VAC
Control: 3 controls
Monitoring: Automatic temperature monitoring
Hobs: 3x SLIDECONTROL hob zones, Range 200 mm each
Adjustment: Freely adjustable power control

Featured compact 4-zone model (active on page)

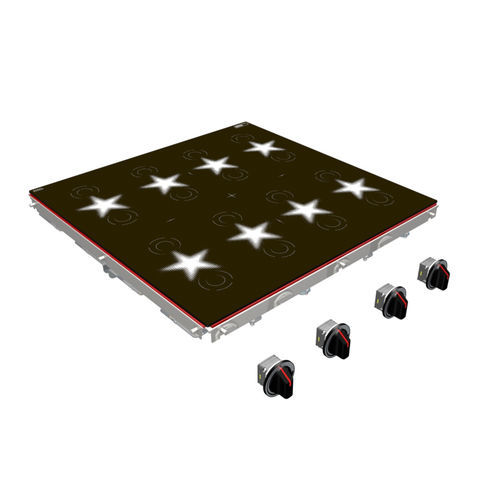

Multifunctional hob MS-I-40M
Compact induction unit with four multifunction cooking zones, each 7.0 kW. Designed for versatile production and food preparation in limited footprint installations.
Key points:
For 4 sauté pans Ø 16 cm each or pots up to Ø 38 cm
Active area per zone: 320 × 320 mm
4 × dual-zone pan detection and temperature monitoring

Technical specifications

• MS-I-40M: Glass dimensions 660 x 660 mm; Output 4 x 7.0 kW; Connector 3x 400 VAC; Control 4 controls; Monitoring 4 × dual-zone temperature monitoring; Hobs 4 × multifunction cooking zones; Active area per zone 320 × 320 mm; Adjustment stepless power control
• Eco induction hob 3.5 kW: Glass 388 x 388 mm; Output 3.5 kW; Connector 1x 230 VAC; 1 control; Central temperature monitoring; 1x Eco round coil (260 mm)
• Power induction hob 6 kW: Glass 388 x 388 mm; Output 6.0 kW; Connector 3x 400 VAC; 1 control; Central temperature monitoring; 1x Power round coil (300 mm)
• Multifunctional hob 7 kW (single): Glass 388 x 388 mm; Output 7.0 kW; Connector 3x 400 VAC; 1 control; 2-zone monitoring; Active range 340 × 360 mm
• Full-coverage large hob 9 kW: Glass 388 x 388 mm; Output 9.0 kW; Connector 3x 400 VAC; 1 control; Full-coverage temperature monitoring; Range 380 × 380 mm
• Double/Triple variants: Available as 2x or 3x zone configurations with corresponding combined outputs and dimensions (examples: Double Eco 356 x 656 mm, 2 x 3.5 kW; Double large 388 x 788 mm, 2 x 9.0 kW)
