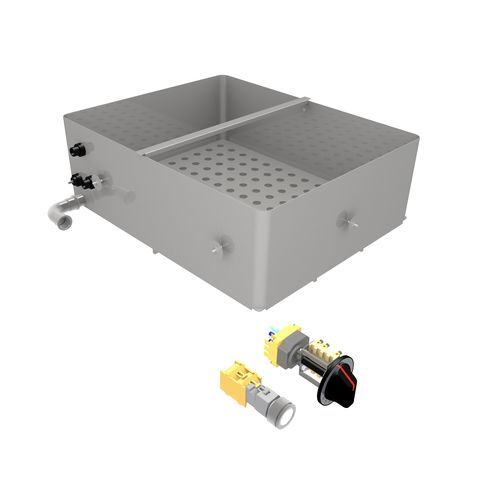

Electric bain-marie MS-BM-GN2/1 E

Overview
MENU SYSTEM bain-maries feature an automatic water filling system with level control and are flush-integrated with the cooking suite surface for professional kitchen installations.

Benefits

• Controlled heat retention
• Electronic sequence control
• Warp-free base for stability
• GN standard compatibility (200 mm deep GN trays)
• Integrated idle protection

Advantages

• Optimised mise en place for service operations
• Safety-relevant features for commercial kitchens
• Very easy handling and maintenance
• Insertion and suspension of GN containers
• Designed for long service life

Products and model details
Bain-marie MS-BM-GN1/1 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 510 x 305 x 210 mm (LxWxD)
Output: 2.4 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN2/1 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 630 x 510 x 210 mm (LxWxD)
Output: 4.8 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 4x1/3 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 685 x 305 x 210 mm (LxWxD)
Output: 3.2 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 5x1/3 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 860 x 305 x 210 mm (LxWxD)
Output: 4.0 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 6x1/3 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 1040 x 305 x 210 mm (LxWxD)
Output: 4.8 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 4x1/6 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 625 x 155 x 210 mm (LxWxD)
Output: 1.6 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 5x1/6 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 790 x 155 x 210 mm (LxWxD)
Output: 1.6 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Bain-marie MS-BM-GN 6x1/6 E
Fully automatic bain-marie for carefree work, for hanging 200 mm deep GN trays.

Specifications:
Dimensions: 955 x 155 x 210 mm (LxWxD)
Output: 2.4 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone — 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Technical specifications

• Automatic water filling system and level control
• Integrated idle protection for extended service life
• GN standard — insertion of GN containers (200 mm deep GN trays)
• Controlled heat retention and electronic sequence control
• Warp-free base for stability and handling
• Single heating zone per unit with adjustable temperature range 30° - 100°C
• Control: 1 control unit per product
• Adjustment: Freely adjustable power control
• Electrical connector: 3x400 VAC
• Outputs vary by model (examples: 1.6 kW, 2.4 kW, 3.2 kW, 4.0 kW, 4.8 kW)
• Dimensions vary by model (see product details above)
