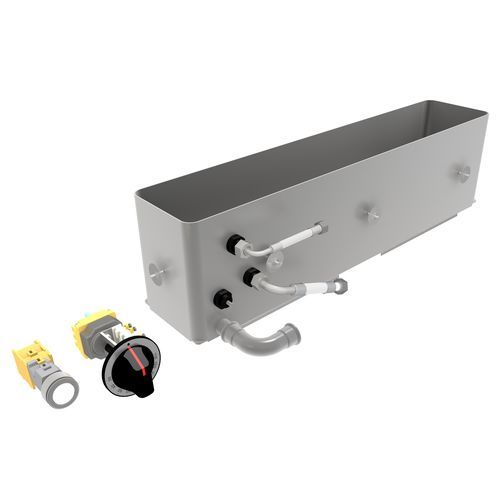

Electric bain-marie MS-BM-GN 5x1/6 E

Overview
MENU SYSTEM bain-maries feature an automatic water filling system and level control. They are flush-integrated with the cooking suite surface for hygienic installation and easy cleaning.

Benefits

• Controlled heat retention
• Electronic sequence control
• Warp-free base
• GN standard (200 mm deep trays)
• Integrated idle protection

Advantages

• Mise en place support for efficient service
• Enhanced safety features for professional kitchens
• Very easy handling and operation
• Secure insertion and hanging of GN containers
• Long service life and low maintenance

Available models

• MS-BM-GN1/1 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 510 x 305 x 210 mm (LxWxD)
  Output: 2.4 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN2/1 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 630 x 510 x 210 mm (LxWxD)
  Output: 4.8 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 4x1/3 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 685 x 305 x 210 mm (LxWxD)
  Output: 3.2 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 5x1/3 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 860 x 305 x 210 mm (LxWxD)
  Output: 4.0 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 6x1/3 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 1040 x 305 x 210 mm (LxWxD)
  Output: 4.8 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 4x1/6 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 625 x 155 x 210 mm (LxWxD)
  Output: 1.6 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 5x1/6 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 790 x 155 x 210 mm (LxWxD)
  Output: 1.6 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control
• MS-BM-GN 6x1/6 E
  Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
  Dimensions: 955 x 155 x 210 mm (LxWxD)
  Output: 2.4 kW
  Connector: 3x400 VAC
  Heating zone: 1 heating zone — 30° - 100°C
  Control: 1 control unit
  Adjustment: Freely adjustable power control

Technical specifications

• Automatic water filling system and level control
• Flush integration with cooking suite surface for hygienic installation
• Designed for hanging 200 mm deep GN trays (GN standard)
• Temperature control range: 30° - 100°C
• Single heating zone per unit (models shown)
• Electronic sequence control and controlled heat retention
• Warp-free base for stability and long service life
• Integrated idle protection for extended service life
• One control unit per appliance; freely adjustable power control
• Electrical connector: 3x400 VAC (model-dependent outputs listed above)
