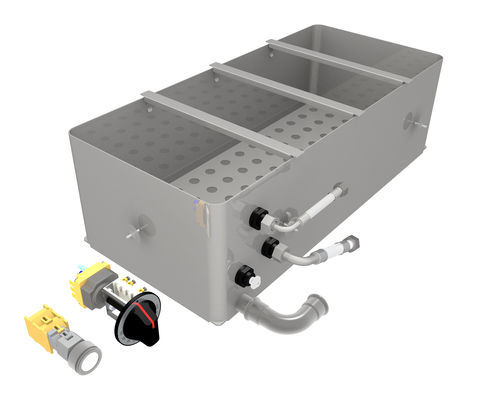

Electric bain-marie MS-BM-GN 4x1/3 E

Product overview
MENU SYSTEM automatic bain-maries provide integrated, fully automatic water-fill and level control and are flush-mounted with the cooking suite surface for professional kitchen use. They accept hanging GN containers with 200 mm depth and offer precise temperature control between 30° and 100°C.

Benefits

• Controlled heat retention for consistent food holding
• Electronic sequence control for stable operation
• Warp-free base ensuring flat GN support
• GN standard compatibility (200 mm deep trays)
• Integrated idle protection to extend service intervals

Advantages

• Optimises mise en place and food staging
• Relevant safety features for professional kitchens
• Simple and ergonomic handling
• Easy insertion and support of GN containers
• Designed for long service life under continuous use

Models and detailed specifications
Model: MS-BM-GN1/1 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 510 x 305 x 210 mm (LxWxD)
Output: 2.4 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN2/1 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 630 x 510 x 210 mm (LxWxD)
Output: 4.8 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 4x1/3 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 685 x 305 x 210 mm (LxWxD)
Output: 3.2 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 5x1/3 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 860 x 305 x 210 mm (LxWxD)
Output: 4.0 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 6x1/3 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 1040 x 305 x 210 mm (LxWxD)
Output: 4.8 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 4x1/6 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 625 x 155 x 210 mm (LxWxD)
Output: 1.6 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 5x1/6 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 790 x 155 x 210 mm (LxWxD)
Output: 1.6 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Model: MS-BM-GN 6x1/6 E
Fully automatic bain-marie for unattended operation, for hanging 200 mm deep GN trays
Specifications:
Dimensions: 955 x 155 x 210 mm (LxWxD)
Output: 2.4 kW
Connector: 3x400 VAC
Heating zone: 1 heating zone - 30° - 100°C
Control: 1 control unit
Adjustment: Freely adjustable power control

Technical specifications

• Automatic water filling system with level control
• Seamless flush integration with cooking suite surface
• Controlled heat retention and electronic sequence control
• Warp-free base ensuring flat support
• GN standard for hanging GN containers (200 mm deep trays)
• Integrated idle protection for extended service life
• Temperature range: 30° - 100°C
• Supply: 3x400 VAC (model-dependent output kW)
