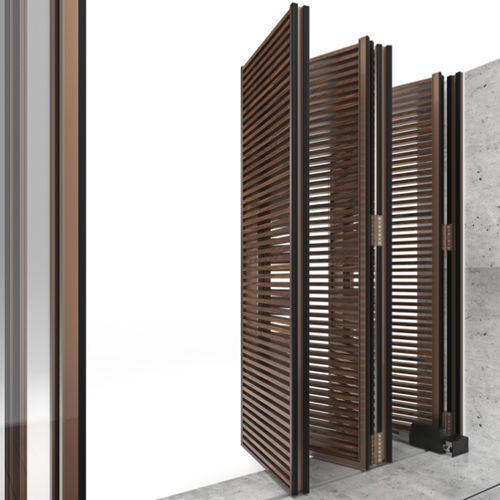

Folding solar shading Motion 10010

compositealuminumsheet metal

Cluster sashes is a kinetic facade shading system comprised of 4 or 6 connected moving sashes creating a cluster. The movement is in the horizontal axis manually or electrically. The max sash width is limited to 1.2 meters and its height can go up to 5 meters. In its standard installation configuration, it is mounted within the building frame. Optionally it can also be fixed on the outside thus creating seamless integration with the building cladding. In its typical configurations the system can accommodate cladding options like natural wood, GRP, Glass, Fiber Cement, Ceramic, Perforated Metal Sheets, Aluminum blades and ACP. The system can be installed directly on the building opening without the need for any special provisions. The only necessary consideration is the wiring arrangement. In total the system requires a depth of 150mm to accommodate the motors as well las the sash internal rotation. This electric folding shading system can be centrally controlled by the Building Management System or individually via a wall mounted switch / remote control in single or group mode.
