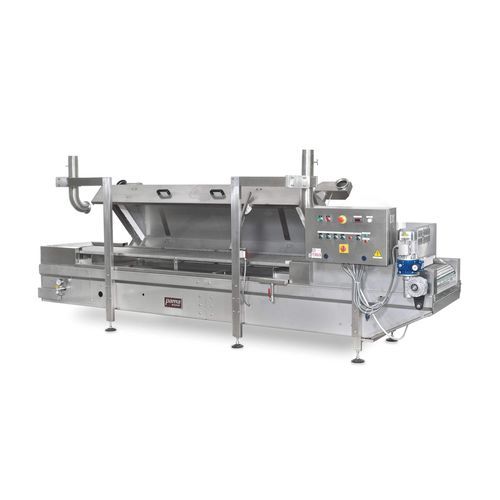

Commercial pasteurizer PS/G-V

Machinery, manufactured completely in STAINLEES STEEL, for HEAT TREATMENT of fresh pasta and stuffed pasta (Pasteurization) with heating system with boiler integrated into the machine and heat exchanger immersed in water. The system adopted eliminates heat loss into the environment and minimizes the power consumption allowing returns of 90/92%. The coverage of the area of pasteurization easily removable allows the total (washing) of the steam production tank and of the belt. Power supply: LPG – METHANE – STEAM. Main characteristics of Pasteurizers for long, short, filled fresh pasta stainless steel cover with internal insulation and automated opening stainless steel condensation collector tank stainless steel netting carpet driven by stainless steel side chains travelling in stainless steel guides steam injection nozzle groups above and below product complete steam control system humidity extraction hoods with adjustable hatches carpet cleaning brush final drying area complete with centrifugal fans and finned heating elements motorised traction reducer with speed regulator Dim. bxpxh 2700x1400x1200 mm 4000x1400x1600 mm 6000x1600x1600 mm 7200x1600x1600 mm Weight 420 kg 630 kg 900 kg 1100 kg Hourly output 40/70 Kg/h 60/120 Kg/h 140/200 Kg/h 180/260 Kg/h Thermic power 30 kW 34 kW 50 kW 100 kW Power consumption 3,2 (26) kW 2,4 kW 7,2 kW 7,2 kW Width belt 600 mm 600 mm 800 mm 800 mm Steam chamber length 1300 mm 2000 mm 3000 mm 4000 mm Fuctioning LPG-METHANE GAS LPG-METHANE GAS LPG-METHANE GAS LPG-METHANE GAS Voltage 3F 230-400V 50/60HZ 3F 230-400V 50/60HZ 3F 230-400V 50/60HZ 3F 230-400V 50/60HZ
