Wall-mounted display panel 55BDL8107X/00

indoorcommercialglass

Product overview

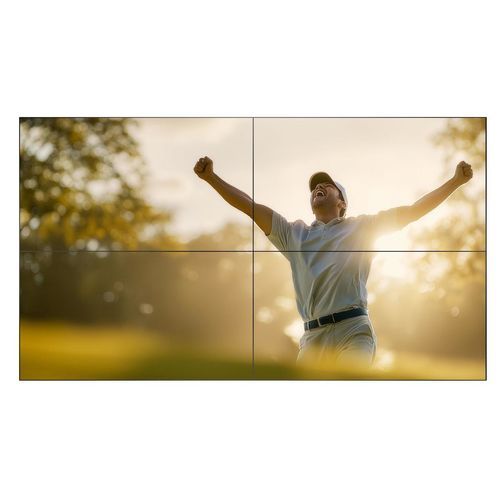

The Philips X-Line videowall display 55BDL8107X/00 is a 55" (54.5" diagonal) Full HD panel designed for professional video wall installations. It delivers 700 cd/m² brightness with ultra-narrow bezels (0.44 mm + 0.44 mm) and supports large tiled matrices for corporate, retail and control-room environments.

Series / Size
8000 Series / X-Line
Size: 55" (54.5" diagonal, 138.7 cm)

Connectivity
Comprehensive I/O for integration and signal chaining:

• Video inputs: HDMI 2.0, DisplayPort 1.3, DVI-D, VGA
• Video output / loopthrough: DisplayPort 1.3, RJ45
• External control: LAN (RJ45), IR 3.5 mm jack
• Other: OPS slot, USB 2.0, thermal sensor, 3.5 mm audio in/out

Convenience & network
Features that simplify installation and remote management:

• Tiled Matrix support up to 15 × 15 for large videowalls
• Network controllable via LAN
• Smart Power energy-saving functionality
• Installation aids: carrying handles, Smart Insert, edge alignment kit
• Placement: landscape or portrait

Accessories

• Included: Gap pad ×3, IR sensor cable, quick start guide, remote control + AAA batteries, RJ45/RS232 converter, power cord, DP cable, RJ45 cable, edge alignment pin, edge alignment kit
• Optional: Edge finishing kit top/bottom (EFK5539), left/right (EFK5569)

Dimensions & weight
Set (W × H × D): 1211.1 mm × 681.9 mm × 95.3 mm (approx.)
Set width: 1211.1 mm (47.68 inch) — Set height: 681.9 mm (26.85 inch)
Set depth: 95.3 / 94.3 mm (3.75 / 3.71 inch)
Bezel width: 0.44 mm + 0.44 mm
Product weight: 23.8 kg
Mounting: Smart Insert 100 × 100 mm (6 × M4 × L6); Wall mount 400 × 400 mm, M6

Sound
Built-in speakers: 2 × 10 W

Power
Power consumption: EEI lot5 134 W
Standby: 0.5 W
Energy label class: G

Operating conditions
Operating temperature: 0 ~ 40 °C
Storage temperature: -20 ~ 60 °C
Operating humidity: 20 - 80% RH
Storage humidity: 5 - 95% RH
MTBF: 50,000 hours
Altitude: 0 ~ 3000 m

Certification & warranty
Regulatory approvals: CE, FCC Class A, RoHS, CB
OSD languages include: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
Warranty: 3 years

Picture / display
Panel resolution: 1920 × 1080 (Full HD)
Brightness: 700 cd/m²
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 500,000:1
Viewing angle: 178° / 178° (H/V)
Display colours: 16.7 M
Pixel pitch: 0.63 × 0.63 mm
Response time: 8 ms
Aspect ratio: 16:9
Haze: 25%

Supported display resolutions
Computer formats include: 640×480 up to 1920×1080 @60 Hz
Video formats include: 720p, 1080i, 1080p, 2160p (50/60 Hz)

Technical specifications

• Model series: 8000 Series / X-Line
• Display size: 55" (54.5" diagonal)
• Panel: 1920 × 1080 Full HD, 700 cd/m²
• Bezel: 0.44 mm + 0.44 mm
• Tiled matrix support: up to 15 × 15
• Inputs: HDMI 2.0, DisplayPort 1.3, DVI-D, VGA
• Outputs: DisplayPort loopthrough, RJ45 loopthrough, 3.5 mm audio out
• Other: OPS slot, USB 2.0, thermal sensor
• Power: 134 W (EEI lot5), standby 0.5 W
• Warranty: 3 years
