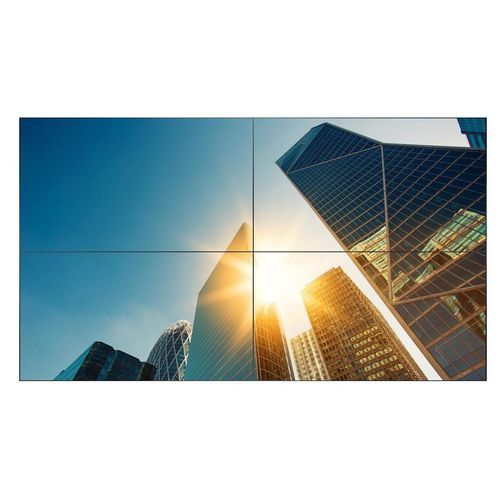

Wall-mounted display panel 55BDL4107X/00

indoorcommercialglass

Overview
Designed for professional videowall installations, the 55BDL4107X/00 (X-Line) provides precise colour reproduction and ultra-narrow bezels to ensure seamless multi-screen layouts. Suitable for corporate signage, control rooms and public displays with Pure Colour Pro imaging.

Size
55” (138.7 cm)

Connectivity
Video output: DisplayPort 1.3
Audio output: 3.5 mm mini jack
Audio input: 3.5 mm mini jack
External control:

• IR 3.5 mm jack
• LAN RJ45
• Signal loopthrough RJ45

Other connections:

• OPS
• USB 2.0
• Thermal sensor

Video input:

• DVI-D
• VGA
• DisplayPort 1.3
• HDMI 2.0

Convenience
Ease of installation:

• Carrying handles
• Smart Insert

Signal loop-through options:

• DisplayPort
• RJ45

Placement modes:

• Landscape
• Portrait

Screen-saving functions: Pixel Shift, Low Bright
Energy-saving: Smart Power
Tiled matrix support: up to 15 x 15
Network controllable via LAN

Accessories (included)

• AC switch cover
• Gap pad x3
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RJ45/RS232 converter
• Wire clamper
• Power cord
• DP cable
• RJ45 cable
• Edge alignment pin
• Kit-1
• Kit-2

Dimensions
Wall mount: 400 mm x 400 mm, M6
Set Height: 683 mm (26.89 inch)
Bezel width: 0.88 mm + 0.88 mm
Product weight: 25.33 kg
Set Depth: 97.7 mm / 98.9 mm (3.85 / 3.89 inch)
Set Width: 1212.2 mm (47.72 inch)
Smart Insert mount: 100 mm x 100 mm, 6×M4×L6

Sound
Built-in speakers: 2 × 10 W

Power
Power consumption (Max / Typical / On mode / Standby): 370 W / 190 W / 150 W / 0.5 W
Energy label class: G

Miscellaneous
On-screen display languages:

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Russian
• Spanish
• Simplified Chinese
• Turkish
• Traditional Chinese

Warranty: 3 year warranty
Regulatory approvals:

• CE
• FCC, Class A
• RoHS
• CB
• BSMI
• ETL
• PSE

Picture / Display
Panel resolution: 1920 x 1080p
Pixel pitch: 0.63 x 0.63 mm
Diagonal screen size: 138.7 cm (54.6 inch)
Brightness: 700 cd/m²
Response time (typical): 8 ms
Contrast ratio (typical): 1100:1
Haze: 28%
Viewing angle (vertical/horizontal): 178° / 178°
Optimum resolution: 1920 x 1080 @ 60 Hz
Display colours: 1.07 B
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9

Operating conditions
Storage temperature: -20 ~ 60 °C
Operating temperature: 0 ~ 40 °C
Storage humidity [RH]: 5 - 95%
Operating humidity [RH]: 20 - 80%
MTBF: 50,000 hour
Altitude: 0 ~ 3000 m

Supported Display Resolution
Computer formats:

• 640 x 480, 60, 72, 75 Hz
• 720 x 400, 70 Hz
• 800 x 600, 60, 75 Hz
• 1024 x 768, 60, 75 Hz
• 1280 x 768, 60 Hz
• 1280 x 800, 60 Hz
• 1280 x 960, 60 Hz
• 1280 x 1024, 60 Hz
• 1360 x 768, 60 Hz
• 1366 x 768, 60 Hz
• 1600 x 1200, 60 Hz
• 1920 x 1080, 60 Hz

Video formats:

• 720p, 50, 60 Hz
• 1080i, 25, 30 Hz
• 1080p, 50, 60 Hz
• 2160p, 50, 60 Hz

Technical specifications

• Model code: 55BDL4107X/00
• Series: 4000 Series (X-Line)
• Panel resolution: 1920 x 1080p
• Diagonal screen size: 54.6 inch / 138.7 cm
• Brightness: 700 cd/m²
• Pixel pitch: 0.63 x 0.63 mm
• Bezel width: 0.88 mm + 0.88 mm
• Product weight: 25.33 kg
• Set dimensions (W x H x D): 1212.2 mm x 683 mm x 97.7 / 98.9 mm
• Mounting: Wall mount 400 x 400 mm (M6); Smart Insert 100 x 100 mm (6×M4×L6)
• Video inputs: DVI-D, VGA, DisplayPort 1.3, HDMI 2.0
• Video output: DisplayPort 1.3
• Audio I/O: 3.5 mm mini jacks
• External control: IR 3.5 mm jack, LAN RJ45, Signal loopthrough RJ45
• Other connections: OPS, USB 2.0, Thermal sensor
• Built-in speakers: 2 × 10 W
• Power consumption (Max/Typical/On/Standby): 370 W / 190 W / 150 W / 0.5 W
• Energy label class: G
• Tiled matrix support: up to 15 x 15
• Warranty: 3 year warranty
• MTBF: 50,000 hour
• Operating temp/humidity: 0 ~ 40 °C ; 20 - 80% RH
• Storage temp/humidity: -20 ~ 60 °C ; 5 - 95% RH
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Display colours: 1.07 B; Dynamic contrast ratio: 500,000:1; Aspect ratio: 16:9
• On-screen display languages: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC (Class A), RoHS, CB, BSMI, ETL, PSE
