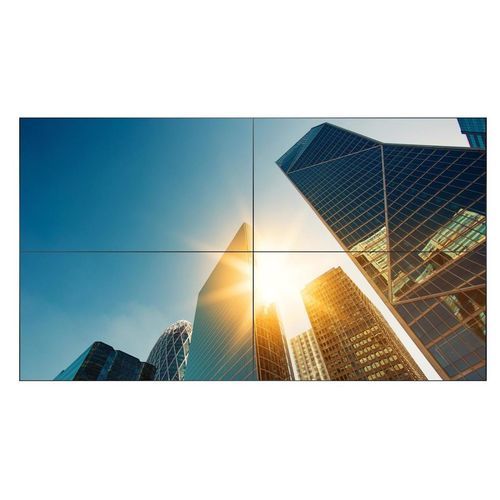

Wall-mounted display panel 55BDL3207X/00

indoorcommercialsmart

Description
The Philips X-Line Videowall 55BDL3207X/00 is a 55" commercial videowall display engineered for tiled installations, corporate signage and control-room applications. With Pure Colour Pro and 700 cd/m² brightness, it delivers accurate colour reproduction and high visibility in bright environments.

Size
55" (54.6" / 138.7 cm)

Connectivity
Video input: DVI-D, HDMI 2.0, VGA, DisplayPort 1.3
Other connections: OPS, USB 2.0, thermal sensor
Audio output: 3.5 mm mini jack
External control: IR 3.5 mm jack, LAN RJ45, signal loopthrough RJ45
Video output: DisplayPort 1.3
Audio input: 3.5 mm mini jack

Convenience

• Orientation: Landscape, Portrait
• Screen saving: Pixel Shift, Low Bright
• Energy saving: Smart Power
• Signal loop-through: DisplayPort, RJ45
• Installation aids: Carrying handles, Smart Insert
• Tiled matrix support: up to 15 x 15
• Network control: LAN

Accessories (included)

• Gap pad x 3
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RJ45/RS232 converter
• Wire clamper
• Power cord
• DP cable
• RJ45 cable
• Edge alignment pin
• Kit-1
• Kit-2

Dimensions
Set width: 1213.4 mm
Set height: 684.2 mm (26.94 inch)
Set depth: 98.2 mm / 99.35 mm
Wall mount: 400 x 400 mm, M6
Smart Insert mount: 100 x 100 mm, 6×M4×L6
Product weight: 26.17 kg
Bezel width: 3.5 mm

Sound
Built-in speakers: 2 × 10 W

Power
Energy label class: G
Consumption (On): 115 W
Typical consumption: 170 W
Max consumption: 340 W
Standby: <0.50 W

Picture / Display
Optimum resolution: 1920 × 1080 @ 60 Hz
Panel resolution: 1920 × 1080p
Display colours: 1.07 B
Brightness: 700 cd/m²
Contrast ratio (typical): 1100:1
Dynamic contrast ratio: 500,000:1
Viewing angle (H / V): 178° / 178°
Pixel pitch: 0.63 × 0.63 mm
Haze: 28%
Aspect ratio: 16:9
Response time (typical): 8 ms

Operating conditions
Altitude: 0–3000 m
Operating temperature: 0–40 °C
Storage temperature: -20–60 °C
Operating humidity: 20–80% RH
Storage humidity: 5–95% RH
MTBF: 50,000 hours

Miscellaneous
Regulatory approvals: CE, FCC (Class A), RoHS, CB, ETL, BSMI, PSE
Warranty: 3 years
On-screen display languages include: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese

Supported Display Resolution
Video formats: 720p 50/60 Hz; 1080i 25/30 Hz; 1080p 50/60 Hz; 2160p 50/60 Hz
Computer formats: 640×480, 720×400, 800×600, 1024×768, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1600×1200, 1920×1080

Technical specifications

• Model family / series: Videowall 3000 Series (X-Line)
• Diagonal screen size: 54.6 inch / 138.7 cm
• Optimum resolution: 1920 × 1080 @ 60 Hz
• Brightness: 700 cd/m²
• Contrast ratio (typical): 1100:1
• Viewing angle: 178° / 178° (H / V)
• Pixel pitch: 0.63 × 0.63 mm
• Bezel width: 3.5 mm
• Set dimensions (W × H × D): 1213.4 × 684.2 × 98.2/99.35 mm
• Product weight: 26.17 kg
• Power (On / Typical / Max / Standby): 115 W / 170 W / 340 W / <0.50 W
• Inputs: DVI-D, HDMI 2.0, VGA, DisplayPort 1.3, OPS, USB 2.0
• Outputs / Loopthrough: DisplayPort 1.3, RJ45 signal loopthrough
• Audio: 3.5 mm in/out; 2 × 10 W speakers
• Network / Control: LAN, IR jack, RJ45/RS232 converter included
• Installation: Wall mount 400 × 400 mm (M6), Smart Insert 100 × 100 mm
• Tiled matrix: up to 15 × 15
• Warranty: 3 years
• MTBF: 50,000 hours
