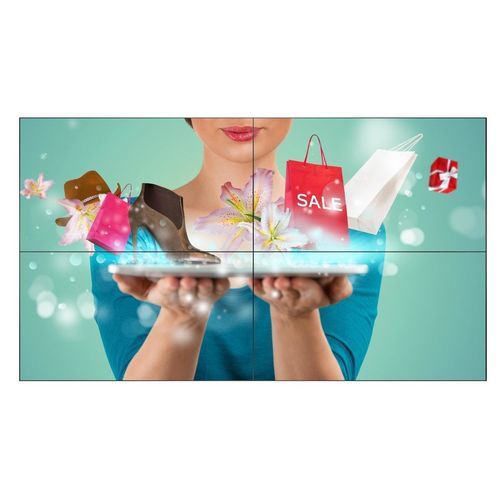

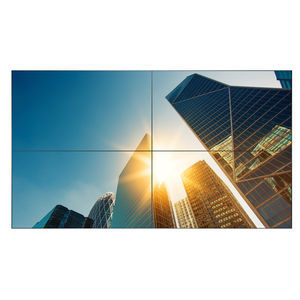

Wall-mounted display panel 55BDL2105X/00

indoorcommercialsmart

Overview
Designed for continuous 24/7 operation, the Philips X-Line Videowall display delivers Full HD content with narrow bezels for seamless multi-panel installations. CMND content management and FailOver support simplify signage management and increase system reliability.

General
Series: Videowall 2000 Series (X-Line)
Size: 55" (138.7 cm)
Panel resolution: 1920 x 1080p; Aspect ratio: 16:9
Brightness: 500 cd/m²; Pixel pitch: 0.63 x 0.63 mm

Connectivity
Video input:

• DisplayPort 1.2
• DVI-D
• HDMI 2.0
• VGA

Video output: DisplayPort 1.2
External control:

• IR 3.5 mm jack
• LAN RJ45

Other connections:

• OPS slot
• USB 2.0
• Thermal sensor

Audio: 3.5 mm in / 3.5 mm out

Convenience
Network controllable via LAN
Tiled matrix support: up to 15 x 15
Screen save: Pixel Shift, Low Bright
Signal loop through: DisplayPort, RJ45
Installation features: Carrying handles, Smart Insert
Placement: Landscape and Portrait

Accessories (included)

• Gap pad x3
• IR sensor cable
• Quick start guide
• Remote control + AAA batteries
• RJ45/RS232 converter
• Wire clamper
• Power cord, DP cable, RJ45 cable
• Edge alignment pin, Kit-1, Kit-2

Dimensions & Mechanical
Set Width: 1213.5 mm; Set Height: 684.3 mm; Set Depth: 97.8 mm
Product weight: 28.8 kg
Bezel width: 2.3 mm + 1.2 mm
Mounting: Smart Insert 100 x 100 mm (6 x M4 x L6); Wall mount 400 x 400 mm (M6)

Sound
Built-in speakers: 2 x 10 W

Power
Consumption (Typical/On/Max): 180 W / 140 W / 340 W
Standby: 0.5 W; Energy Label Class: G

Operating conditions
Operating temperature: 0 ~ 40 °C; Storage: -20 ~ 60 °C
Operating humidity: 20 - 80% RH; Storage humidity: 5 - 95% RH
MTBF: 50,000 hours; Altitude: 0 ~ 3000 m

Miscellaneous
OSD languages include Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
Warranty: 3 year warranty
Regulatory approvals: CE; FCC Class A; RoHS; CB; ETL; BSMI

Picture / Display
Brightness: 500 cd/m²; Contrast ratio (typical): 1200:1; Dynamic contrast: 500,000:1
Viewing angle: 178° horizontal / 178° vertical; Haze: 25%
Optimum resolution: 1920 x 1080 @ 60 Hz; Response time: 8 ms

Supported Display Resolution
Computer formats: 640 x 480 to 1920 x 1080 (see full list)
Video formats: 2160p 50/60 Hz; 1080p 50/60 Hz; 720p 50/60 Hz; 1080i

Technical specifications

• Model identifier: 55BDL2105X/00
• Size: 55" (138.7 cm)
• Panel resolution: 1920 x 1080p
• Brightness: 500 cd/m²; Pixel pitch: 0.63 x 0.63 mm
• Inputs/outputs: DP1.2, DVI-D, HDMI 2.0, VGA, DP out, OPS, USB 2.0
• Speakers: 2 x 10 W; Network controllable: LAN
• Tiled matrix support: up to 15 x 15
• Power: Typical 180 W; Standby 0.5 W
• Dimensions (W x H x D): 1213.5 x 684.3 x 97.8 mm; Weight: 28.8 kg
• Bezel: 2.3 mm + 1.2 mm
• Warranty: 3 years; Approvals: CE, FCC Class A, RoHS, CB, ETL, BSMI
