Wall-mounted display panel 55BDL8007X/00

indoorcommercialsmart

Product overview

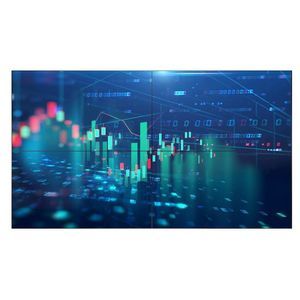

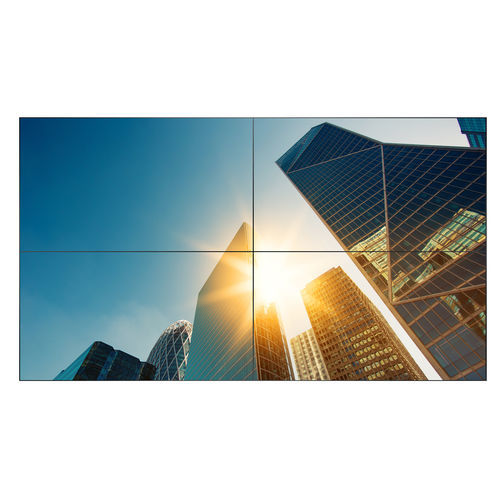

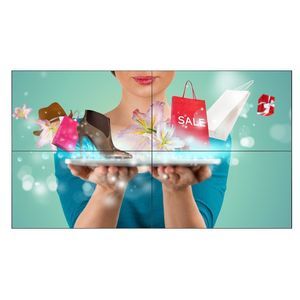

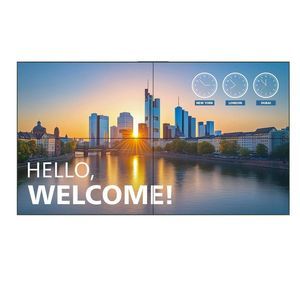

The Philips X-Line 8000 Series videowall display, model 55BDL8007X/00, is a 55" Full HD professional display designed for multi-screen video wall installations. With 700 cd/m² brightness, ultra-narrow 0.44+0.44 mm bezels and Pure Colour Pro processing, it delivers high visual impact for corporate signage and control-room environments.

Connectivity

• Video inputs: DVI-D, VGA, DisplayPort 1.3, HDMI 2.0
• Video output: DisplayPort 1.3
• Other: OPS slot, USB 2.0, thermal sensor
• External control: IR 3.5 mm jack, LAN RJ45, signal loop-through RJ45
• Audio: 3.5 mm mini jack input and output

Convenience

• Tiled Matrix: up to 15 x 15
• Network controllable via LAN
• Energy-saving: Smart Power
• Placement: landscape or portrait
• Screen-saving: Pixel Shift, Low Bright
• Ease of installation: carrying handles, Smart Insert
• Signal loop-through: DisplayPort, RJ45

Accessories (included)

• AC switch cover
• Gap pad x 3
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RJ45/RS232 converter
• Wire clamper
• Power cord
• DP cable
• RJ45 cable
• Edge alignment pin
• Kit-1
• Kit-2

Dimensions

• Set (W x H x D): 1210.5 mm x 681.2 mm x 97.3/98.4 mm
• Set Width: 1210.5 mm
• Set Height: 681.2 mm (26.82 inch)
• Set Depth: 97.3 mm / 98.4 mm (3.83 / 3.87 inch)
• Set Weight: 23.8 kg
• Bezel width: 0.44 mm + 0.44 mm
• Wall mount: 400 x 400 mm, M6
• Smart Insert mount: 100 x 100 mm, 6 x M4 x L6

Sound

• Built-in speakers: 2 x 10 W

Power

• Typical consumption: 190 W
• On mode: 150 W
• Max consumption: 370 W
• Standby: 0.5 W
• Energy label class: G

Miscellaneous

• Regulatory approvals: CE, FCC Class A, RoHS, CB, BSMI, ETL, PSE
• Warranty: 3 years
• On-screen display languages include: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese

Picture / Display

• Diagonal screen size: 54.5 inch (138.7 cm)
• Panel resolution: 1920 x 1080p @ 60 Hz
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 700 cd/m²
• Viewing angle (H/V): 178° / 178°
• Contrast ratio (typical): 1100:1
• Dynamic contrast ratio: 500,000:1
• Display colours: 1.07 B
• Aspect ratio: 16:9
• Pixel pitch: 0.63 x 0.63 mm
• Response time: 8 ms
• Haze: 28%

Operating conditions

• MTBF: 50,000 hours
• Operating temperature: 0 ~ 40 °C
• Storage temperature: -20 ~ 60 °C
• Operating humidity: 20 - 80% RH
• Storage humidity: 5 - 95% RH
• Altitude: 0 ~ 3000 m

Supported Display Resolution

• Video formats: 720p (50, 60 Hz), 1080i (25, 30 Hz), 1080p (50, 60 Hz), 2160P (50, 60 Hz)
• Computer formats (examples): 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1600 x 1200, 1920 x 1080 @ 60 Hz

Technical specifications

• Series: 8000 Series (X-Line)
• Diagonal screen size: 54.5 inch (138.7 cm)
• Panel resolution: 1920 x 1080p @ 60 Hz
• Brightness: 700 cd/m²
• Pixel pitch: 0.63 x 0.63 mm
• Bezel width: 0.44 mm + 0.44 mm
• Set dimensions (W x H x D): 1210.5 x 681.2 x 97.3/98.4 mm
• Weight: 23.8 kg
• Typical power consumption: 190 W (On: 150 W, Max: 370 W, Standby: 0.5 W)
• Built-in audio: 2 x 10 W
• Warranty: 3 years
