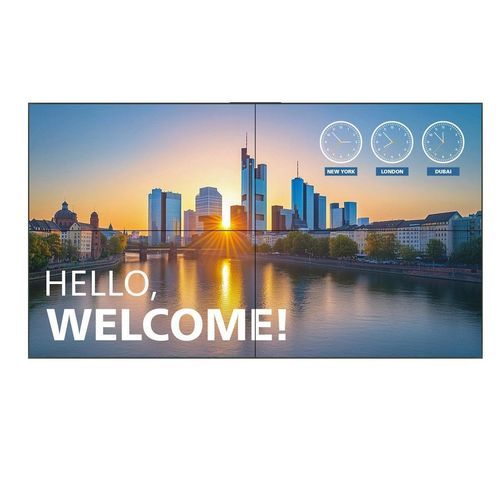

Wall-mounted display panel 55BDL3305X/00

indoorcommercialglass

Overview The Philips Videowall 3000 (model 55BDL3305X/00) is engineered for continuous 24/7 operation and large-format video wall installations. CMND platform integration simplifies centralized content management and FailOver increases display reliability for critical signage applications.

Size 55"

Connectivity Other connections: OPS, USB 2.0, Thermal sensor
Audio output: 3.5 mm mini jack
Audio input: 3.5 mm mini jack
Video input: DisplayPort 1.2, DVI-D, HDMI 2.0, VGA
External control: IR 3.5 mm jack, LAN RJ45
Video output: DisplayPort 1.2

Convenience Signal loop through: DisplayPort, RJ45
Ease of installation: Carrying handles, Smart Insert
Placement: Landscape, Portrait
Screen-saving functions: Pixel Shift, Low Bright
Energy-saving functions: Smart Power
Tiled Matrix: Up to 15 x 15
Network controllable: LAN

Accessories

• Gap pad x 3
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RJ45/RS232 converter
• Wire Clamper
• Power cord
• DP cable
• RJ45 cable
• Edge alignment pin
• Kit-1
• Kit-2

Dimensions Bezel width (combined): < 3 mm (typical 2.9 mm)
Smart Insert mount: 100 mm x 100 mm and 100 mm x 200 mm, 6 x M4 x L6
Set dimensions (W x H x D) inches: 47.69 x 26.85 x 3.85 / 3.85 inch
Set dimensions (W x H x D) mm: 1211.3 x 682.1 x 97.8 mm
Wall Mount: 400 x 400 mm, M6
Product weight: 28.7 kg
Bezel width: 2.9 mm

Sound Built-in speakers: 2 x 10 W

Power Standby power consumption: 0.5 W
Consumption (Max): 228 W
Consumption (Typical): 164 W
Energy Label Class: G

Miscellaneous Warranty: 3 year warranty
On-Screen Display Languages:

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Russian
• Spanish
• Simplified Chinese
• Turkish
• Traditional Chinese

Regulatory approvals:

• CE
• FCC, Class A
• RoHS
• CB
• ETL
• BSMI

Picture/Display Diagonal screen size (inch): 55 inch
Contrast ratio (typical): 1200:1
Viewing angle (vertical): 178 degree
Haze: 25%
Brightness: 500 cd/m²
Response time (typical): 8 ms
Optimum resolution: 1920 x 1080 @ 60 Hz
Pixel pitch: 0.63 x 0.63 mm
Panel resolution: 1920 x 1080p
Display colours: 16.7 M
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree

Operating conditions Humidity range (operation) [RH]: 20–80%
Humidity range (storage) [RH]: 5–95%
Temperature range (operation): 0 ~ 40 °C
Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 5000 m
MTBF: 50,000 hour

Supported Display Resolution Computer formats: For details, see user manual
Video formats:

• 1080p: 25, 30, 50, 60 Hz
• 720p: 50, 60 Hz
• 1080i: 50, 60 Hz
• 2160p: 25, 30, 50, 60 Hz

Technical specifications

• Product name: 55BDL3305X/00
• Series: Videowall 3000 Series (X-Line)
• Diagonal screen size: 55 inch
• Panel resolution: 1920 x 1080p
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time: 8 ms
• Pixel pitch: 0.63 x 0.63 mm
• Display colours: 16.7 M
• Viewing angle (H/V): 178/178 degree
• Bezel width (combined): < 3 mm (typical 2.9 mm)
• Set dimensions (W x H x D): 1211.3 x 682.1 x 97.8 mm
• Product weight: 28.7 kg
• Wall mount: 400 x 400 mm, M6
• Power (Max/Typical/Standby): 228 W / 164 W / 0.5 W
• Built-in speakers: 2 x 10 W
• Network controllable: LAN
• Tiled matrix support: Up to 15 x 15
• Included accessories: Gap pad x 3; IR sensor cable; Quick start guide; Remote control and AAA batteries; RJ45/RS232 converter; Wire Clamper; Power cord; DP cable; RJ45 cable; Edge alignment pin; Kit-1; Kit-2
• On-screen languages: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
• Regulatory approvals: CE, FCC Class A, RoHS, CB, ETL, BSMI
• Operating ranges: Temperature 0 ~ 40 °C (operation), -20 ~ 60 °C (storage); Humidity operation 20–80%, storage 5–95%
