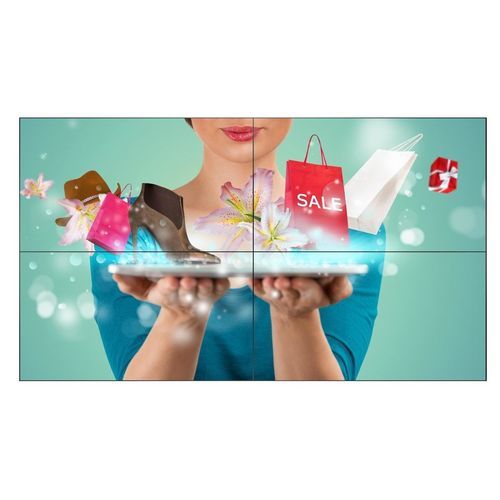

Wall-mounted display panel 49BDL2105X/00

indoorcommercialglass

Overview
Designed for continuous 24/7 operation, the Philips X-Line Videowall display delivers high brightness and narrow bezels for impactful, seamless video wall installations. CMND content management and FailOver increase operational reliability and simplify content updates for retail and corporate signage.

Key specifications

• Model: 49BDL2105X/00 (Videowall 2000 Series, X-Line)
• Panel / Optimum resolution: 1920 x 1080 (Full HD)
• Diagonal screen size: 48.5 in (123 cm)
• Brightness: 500 cd/m²
• Bezel width: 2.3 mm + 1.2 mm
• Tiled matrix support: up to 15 x 15
• Warranty: 3 years

Connectivity

• Video input: DisplayPort 1.2, DVI-D, HDMI 2.0, VGA
• Video output: DisplayPort 1.2
• External control: IR 3.5 mm jack, LAN RJ45
• Audio input/output: 3.5 mm mini jack
• Other: OPS slot, USB 2.0, thermal sensor

Convenience & installation

• Placement: Landscape or Portrait
• Screen-saving: Pixel Shift, Low Bright
• Signal loop through: DisplayPort, RJ45
• Network controllable via LAN
• Mounting: Smart Insert 100 x 100 mm (6xM4xL6); Wall mount 400 x 400 mm (M6)
• Installation aids: Carrying handles, Smart Insert, edge alignment pin

Accessories (included)

• Gap pad x3
• IR sensor cable
• Quick start guide
• Remote control + AAA batteries
• RJ45/RS232 converter
• Wire clamper
• Power cord
• DP cable
• RJ45 cable
• Edge alignment pin
• Kit-1
• Kit-2

Dimensions & weight

• Set Width: 1077.6 mm (42.44 in)
• Set Height: 607.8 mm (23.94 in)
• Set Depth: 93.3 / 103.3 mm (3.68 / 4.1 in)
• Product weight: 21.7 kg

Power & sound

• Power consumption (Typical / Max / On): 100 W / 230 W / 64 W
• Standby: 0.5 W
• Energy label: G
• Built-in speakers: 2 x 10 W

Picture / display

• Panel resolution: 1920 x 1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²; Haze: 3%
• Contrast ratio: 1000:1 (typical)
• Response time: 8 ms (typical)
• Pixel pitch: 0.55926 x 0.55926 mm
• Viewing angle: 178° / 178°
• Display colours: 1.07 B

Supported resolutions & formats

• Video: 720p, 1080i, 1080p, 2160p (50/60 Hz as supported)
• Computer formats up to: 1920 x 1080 @ 60 Hz and various common resolutions

Certifications & operating conditions

• Regulatory: CE, FCC Class A, RoHS, CB, ETL, BSMI
• Operating temperature: 0 ~ 40 °C; Storage: -20 ~ 60 °C
• Humidity (operation): 20 - 80%; Storage: 5 - 95%
• Altitude: 0 ~ 3000 m; MTBF: 50,000 hours

Product summary

• Reference: 49BDL2105X/00
• Series: Videowall 2000 Series (X-Line)
• Ideal for high-impact retail, corporate and control-room videowall installations requiring narrow bezels and 24/7 reliability
