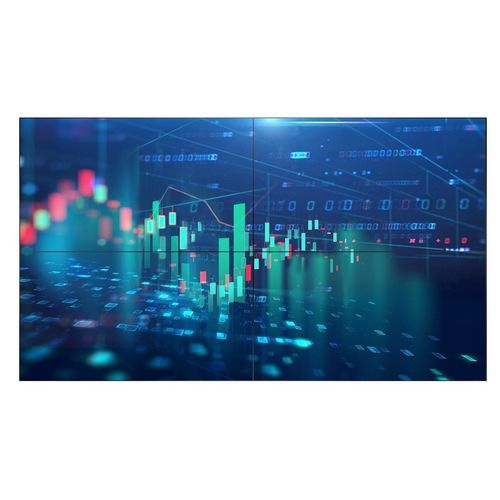

Wall-mounted display panel 65BDL6005X/00

indoorcommercialsmart

Product description
Ensure that every detail is under control. The Philips X-Line Videowall display is designed for 24/7 operation and can be customised to fit all of your content needs. View content from multiple sources in real-time with enhanced picture quality.

General
Size: 65”
Series: 6000 Series / X-Line

Connectivity
External control: IR 3.5 mm jack, IR RJ45, LAN RJ45, RS232 RJ45
Audio input: 3.5 mm mini jack
Video output: DisplayPort 1.2
Video input: Display Port 1.2, DVI-D, HDMI 2.0, VGA
Other connections: OPS, USB 2.0
Audio output: 3.5 mm Mini Jack

Convenience
Tiled Matrix: Up to 10 x 10
Network controllable: LAN
Energy-saving functions: Smart Power
Placement: Landscape, Portrait
Screen-saving functions: Pixel Shift, Low Bright
Signal loop through: DisplayPort, IR and RS232 via RJ45, LAN
Ease of installation: Carrying Handles, Smart Insert

Accessories (included)

• AC Switch Cover
• Edge Alignment Kit
• Gap pad x 3
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RJ45/RS232 converter
• Wire Clamper
• Power cord
• DP cable
• RJ45 cable

Dimensions
Set Depth (inch): 3.50/3.61 inch
Product weight: 29.2 kg
Bezel width: 2.3 mm + 1.2 mm
Set Depth: 88.8 mm / 91.7 mm
Set Width: 1432.6 mm (56.40 inch)
Set Height: 807.6 mm (31.80 inch)
Wall Mount: 400 mm x 400 mm, M6

Sound
Built-in speakers: 2 x 10 W

Power
Consumption (Max): 400 W
Consumption (Typical): 210 W
Consumption (On mode): 150 W
Standby power consumption: 0.5 W
Energy Label Class: G

Miscellaneous
Regulatory approvals: CE, FCC (Class A), RoHS, CB, ETL
Warranty: 3 year warranty
On-Screen Display Languages:

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Russian
• Spanish
• Simplified Chinese
• Traditional Chinese
• Turkish

Operating conditions
Temperature range (storage): -20 ~ 60 °C
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5 - 95%
Humidity range (operation) [RH]: 20 - 80%
Altitude: 0 ~ 3000 m
MTBF: 50,000 hour

Picture/Display
Response time (typical): 8 ms
Panel resolution: 3840 x 2160
Pixel pitch: 0.372 x 0.372 mm
Viewing angle (horizontal): 178 degree
Viewing angle (vertical): 178 degree
Aspect ratio: 16:9
Dynamic contrast ratio: 500,000:1
Contrast ratio (typical): 1300:1
Display colours: 1.07 B
Optimum resolution: 3840 x 2160 @ 60 Hz
Diagonal screen size (inch): 64.5 inch (164 cm)
Haze: 25%
Brightness: 500 cd/m²

Supported Display Resolution
Computer formats: 720 x 400 (70 Hz); 800 x 600 (60, 75 Hz); 1024 x 768 (60, 75 Hz); 1280 x 768 (60 Hz); 1280 x 800 (60 Hz); 1280 x 960 (60 Hz); 1280 x 1024 (60 Hz); 1360 x 768 (60 Hz); 1366 x 768 (60 Hz); 1600 x 1200 (60 Hz); 1920 x 1080 (60 Hz); 3840 x 2160 (60 Hz)
Video formats: 720p (50, 60 Hz); 1080i (25, 30 Hz); 1080p (50, 60 Hz); 3840 x 2160 (60 Hz); 2160P (50, 60 Hz)

Caractéristiques / spécifications techniques

• Title / Model code: 65BDL6005X/00
• Denomination: 6000 Series (X-Line)
• Brand: Philips
• Diagonal screen size: 65” (64.5 inch / 164 cm)
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1300:1
• Dynamic contrast ratio: 500,000:1
• Viewing angles: 178° horizontal / 178° vertical
• Pixel pitch: 0.372 x 0.372 mm
• Response time (typical): 8 ms
• Display colours: 1.07 B
• Power (Max/Typical/On): 400 W / 210 W / 150 W
• Standby power: 0.5 W
• Energy label class: G
• Product weight: 29.2 kg
• Bezel width: 2.3 mm + 1.2 mm
• Set dimensions (W x H x D): 1432.6 mm x 807.6 mm x 88.8/91.7 mm
• Wall mount: 400 mm x 400 mm, M6
• Included accessories: AC Switch Cover; Edge Alignment Kit; Gap pad x3; IR sensor cable; Quick start guide; Remote control + AAA; RJ45/RS232 converter; Wire Clamper; Power cord; DP cable; RJ45 cable
• Connectivity: DisplayPort 1.2 (in/out), HDMI 2.0, DVI-D, VGA, OPS, USB 2.0, LAN RJ45, IR (3.5 mm & RJ45), RS232 (RJ45)
• Audio: 2 x 10 W built-in speakers; audio in/out 3.5 mm mini jack
• Network controllable: LAN; Tiled matrix support up to 10 x 10
• Screen-saving: Pixel Shift, Low Bright; Ease of installation: Carrying Handles, Smart Insert
• Operating temperature: 0 ~ 40 °C; storage: -20 ~ 60 °C
• Humidity (operation/storage): 20 - 80% / 5 - 95%
• MTBF: 50,000 hours
• Regulatory: CE, FCC (Class A), RoHS, CB, ETL
• Warranty: 3 years
