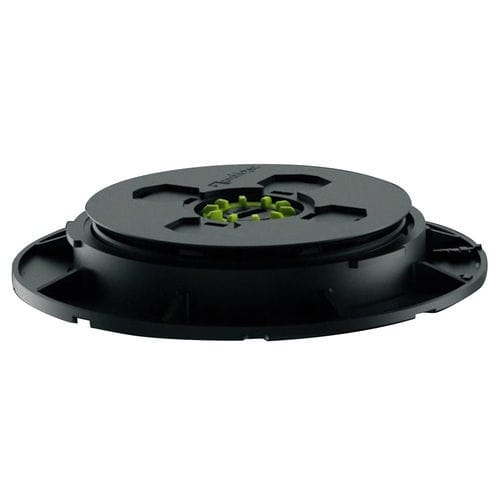

Polypropylene raised floor pedestal SUPAL

self-levelingadjustableoutdoor

The SUPAL is a low-height adjustable pedestal for raised floors, designed to support decking and paving systems and to switch quickly between self-leveling and fixed configurations.

Key features:

• Adjustable pedestal with a mechanism allowing rapid switching between self-leveling and fixed modes without additional accessories.
• Head accepts installation accessories for standard joints (2 mm and 4 mm spacers) and can host a head for a wooden beam or an aluminium joist (aluminium joist requires 4 mm spacers).
• Base designed for water evacuation with drainage holes and four pre-cut lines on the underside for easy trimming at corners and perimeters.

Materials and finishes available:

• Polypropylene — low version suitable for the heights indicated.

Available variants (H / Article):

• 28 / 43 mm — SUPAL

Technical specifications:

• Adjustable height range: 28–43 mm
• Base diameter: 190 mm
• Head diameter: 130 mm
• Self-leveling capability: compensates slopes up to 5% in self-leveling mode
• Accessories compatibility: 2 mm spacers, 4 mm spacers; head for wooden beam; aluminium joist (with 4 mm spacers)
• Drainage: holes on base to allow water flow
• Cutting/trimming: four pre-cut lines on the lower side for corner/perimeter cutting
• Material: polypropylene

Main applications:

• Support for raised access floors and low-height outdoor/indoor decking and paving installations.
