Aluminum edge trim Bordertec BST20

for tilefor raised floorsrectangular

Product overview

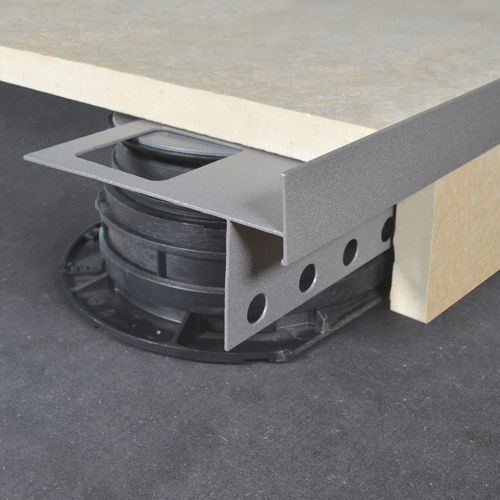

Bordertec BST20 is a powder-coated aluminium profile designed to provide a perimeter closure for raised access floors. It reduces the visible edge height and conceals imperfections of the vertical edge tile. The tile is fitted vertically into the profile groove or may be glued to the vertical end tile using the pre-drilled holes.

Materials and finishes
Powder-coated aluminium. Available with an embossed Modern Line finish. Colour examples: Embossed Pastel Grey, Micaceous Grey, Embossed Dove, Embossed Matt Black.

Available variants

• 20 x 12 mm — BST 20 A22 — Embossed Pastel Grey
• 20 x 12 mm — BST 20 A50 — Micaceous Grey
• 20 x 12 mm — BST 20 A24 — Embossed Pastel Grey
• 20 x 12 mm — BST 20 A33 — Embossed Dove
• 20 x 12 mm — BST 20 A65 — Embossed Matt Black

Accessories

• Bordertec BSTE — external corner connector for perimeter closure profiles (powder-coated aluminium)

Downloads

• Bordertec BST20 — Datasheet (PDF)

Technical specifications

• Material: Powder-coated aluminium
• Section: 20 x 12 mm
• Article codes: BST 20 A22, BST 20 A50, BST 20 A24, BST 20 A33, BST 20 A65
• Installation: lateral closure of raised floor; tile inserted vertically into profile groove or glued using provided holes
• Accessory: Bordertec BSTE (external corner)
• Technical resources: datasheet and technical drawings available for download
