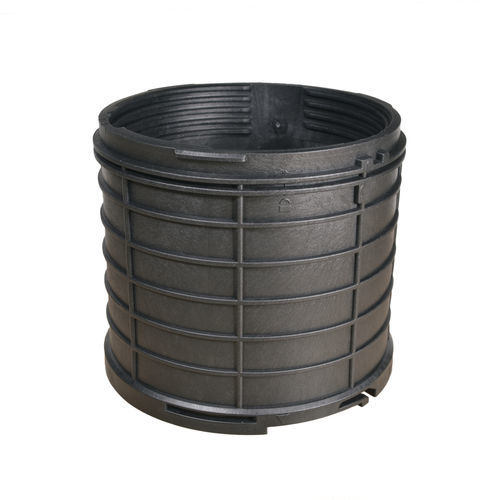

Polypropylene raised floor pedestal UPTEC SUPAR120

stackable

Uptec SUPAR120 is a stackable ring designed to increase the height of raised-floor pedestals and to be used in combination with standard supports SUPAS and SUPASFX. It increases the height by 120 mm and can be assembled easily (alignment symbols on ring and support); it can be used individually or together with the SUPAR ring to reach the desired height, saving installation time when required height exceeds 148 mm.

Product highlights

• Stackable ring for Uptec pedestal systems (SUPAS, SUPASFX).
• Height increase per piece: 120 mm.
• Designed for quick and correct assembly thanks to lock/unlock symbols on the ring and pedestal base (open padlock / closed padlock).
• Can be used alone or together with SUPAR rings to achieve higher final heights; reduces installation time for heights over 148 mm.

Materials / available configurations

• Material: Polypropylene (stackable ring in polypropylene).
• Intended combination: to be used with SUPAS and SUPAR pedestals.

Reference table

• H (mm): 120 — Art.: SUPAR 120

Technical specifications

• Denomination (article): SUPAR 120
• Material: Polypropylene
• Height increase per unit: 120 mm
• Compatibility: SUPAS and SUPASFX pedestals; stackable with SUPAR rings
• Assembly: alignment symbols (open padlock / closed padlock) on ring and pedestal base for easy assembly
• Use case: raised-floor installations where required height exceeds 148 mm

Downloads

• Product datasheet: SUPAR-SUPAR120
