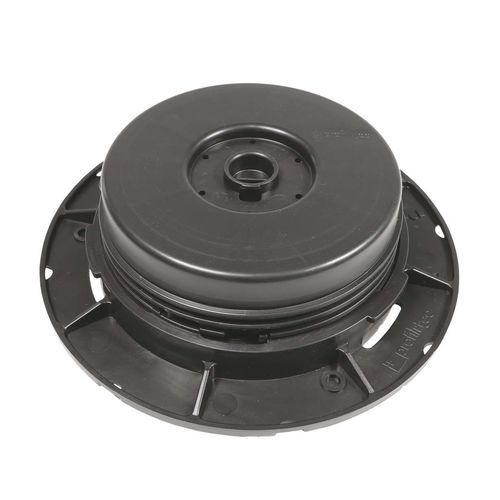

Polypropylene raised floor pedestal UPTEC SUPASFX

adjustablestackablefor tile

The Uptec SUPASFX is a standard fixed-head pedestal designed for installing raised floors on wide, horizontal and perfectly planar surfaces. It is a modular solution that accepts accessories to compensate slopes, set tile spacings and increase height when required.

Key features

• Fixed-head pedestal for quick installation on large, planar areas.
• Compatible with head spacers for 2 mm and 4 mm joints; aluminium joist application possible with 4 mm spacers.
• Slope compensation using SUPL2 and SUPL3 accessories.
• Height increase achievable by adding SUPAR stackable extension rings.

Materials / finishes

• Polypropylene (standard version)

Technical data

• H/H1 (mm): 43 / 58 — Art.: SUPASFX

Characteristics / technical specifications

• Adjustable height (H / H1): 43–58 mm
• Base diameter: 190 mm
• Head diameter: 130 mm
• Material: Polypropylene (standard version)
• Slope compensation accessories: SUPL2, SUPL3
• Spacers: 2 mm and 4 mm head spacer options
• Aluminium joist: compatible when using 4 mm spacers
• Stackable extension: SUPAR rings for additional elevation
• Recommended use: wide, horizontal and perfectly planar raised-floor installations
