Polypropylene raised floor pedestal UPTEC SUPAANG

aluminiumrubbernoise-reduction

Description

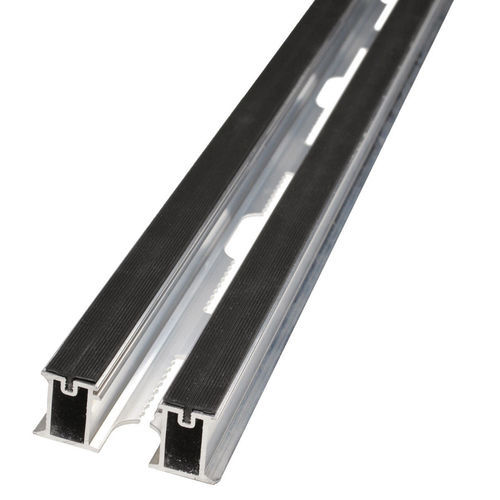

SUPAANG240 is an aluminium joist designed for raised/floating floor systems to install large-format rectangular tiles. Supplied in 2.40 m lengths, it ensures adaptable laying options and compatibility with SUPA4 tabs. The profile is prepared for quick installation with pre-fitted anti-noise rubber strips, base drainage openings and height adjustment with the SUPAK key.

Key features

• Standard length: 2.40 m; compatible with 4 mm SUPA4 tabs.
• Base openings for controlled water drainage and secure attachment to the pedestal head.
• Height adjustable during and after installation using the SUPAK key.
• Pre-installed anti-noise rubber bands to reduce assembly time.
• Suitable for ceramic, wood and DECK coverings with appropriate clips.

Materials & finishes

• Aluminum / Natural — H (mm): 27.5 x 63.6 — Art.: SUPAANG 240
• Aluminum / Anodized — H (mm): 27.5 x 63.6 — Art.: SUPAANGB 240 — Color: Black

Accessories

• SUPAJG — polypropylene junction to connect SUPAANG joists for runs longer than 2.40 m; inserts between ends for increased stability.
• SUPDG — spacers for creating 4 mm joints, ensuring uniform tile gaps on aluminium joists.
• SUPCLIPG — locking clip for laying DECK floors on aluminium frames; secures board placement outdoors.
• SUPACLPPT — perimeter clip for SUPAANG240 to define wall perimeter on the joists.

Documentation

• Product datasheet (SUPAANG240) — technical drawings and PDF documentation.
• Uptec Book and Uptec manual available for download.

Technical specifications

• Material: Aluminium
• Standard length: 2.40 m
• Compatible spacer/tab: SUPA4 (4 mm)
• Profile height (H): 27.5 x 63.6 mm
• Article codes: SUPAANG 240 (Natural); SUPAANGB 240 (Anodized, Black)
• Functions: base drainage openings; secure attachment to pedestal head; height adjustable via SUPAK key; pre-installed anti-noise rubber bands
