Stainless steel edge trim Bordertec BSJ

aluminumfor tilefor raised floors

Product overview

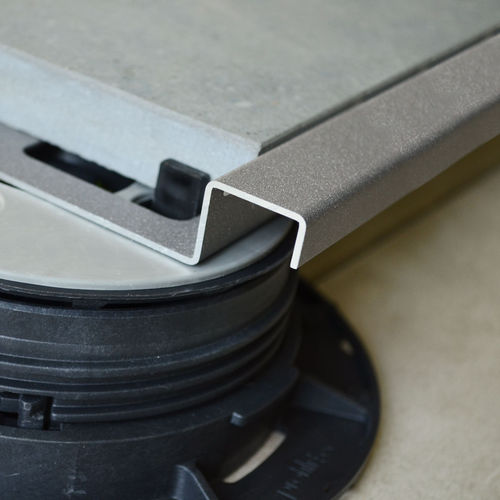

Bordertec BSJ is a visible 2 cm decorative perimeter profile designed for lateral closure of raised (floating) floors. The tile is inserted vertically into the profile groove to provide a continuous finish between horizontal and vertical surfaces. Available in stainless steel and powder-coated aluminium, with dedicated external corners and installation accessories.

Stainless Steel 304
Profile in AISI 304 (DIN 1.4301) stainless steel, resistant to mechanical impact and corrosion. Finish available: Brushed (IS). External corner: BSJE.

Available sizes / articles (Stainless Steel 304)
BxH1 (mm) | Art.
20 x 12 | BSJ 20 IS

Aluminum
Profile in powder-coated aluminium. Available with embossed Modern Line finish and several painted colours/textures. External corner: BSJE.

Available sizes / articles (Aluminum, Powder Coated)
BxH1 (mm) | Art. | Color
20 x 12 | BSJ 20 A22 | Pastel Grey
20 x 12 | BSJ 20 A50 | Micaceous Grey
20 x 12 | BSJ 20 A24 | Embossed Pastel Grey
20 x 12 | BSJ 20 A33 | Embossed Dove
20 x 12 | BSJ 20 A65 | Embossed Matt Black

Accessories

• External corner for laying Bordertec BSJ — Bordertec BSJE: external corner for the perimeter closing profile; available in brushed stainless steel (IS) and painted aluminium.
• Installation clip for raised floors with Bordertec BSJ — SUPACLPB base clip: positioned under the pedestal base while the BSJ profile sits above the pedestal head; the tile is inserted between clip and profile.

Downloads and technical resources
Datasheet and technical drawings available for download (product datasheet in PDF; technical sections and dimension files provided by the manufacturer).

Technical characteristics / specifications

• Intended tile thickness: 2 cm (profile designed for 2 cm tiles)
• Visible decorative width: 2 cm
• Standard dimension shown: 20 x 12 mm (BxH1)
• Materials: AISI 304 stainless steel (1.4301); powder-coated aluminium
• Finish options: Brushed (stainless steel); Powder coated (various colours and embossed Modern Line for aluminium)
• Article codes: BSJ 20 IS (stainless steel); BSJ 20 A22, A50, A24, A33, A65 (aluminium variants)
• External corner accessory: BSJE
• Installation accessory: SUPACLPB base clip
• Typical application: lateral/perimeter closure of raised/floating floors with tile inserted vertically into profile groove
