Polypropylene raised floor pedestal SUPAS
self-levelingadjustableadjustable

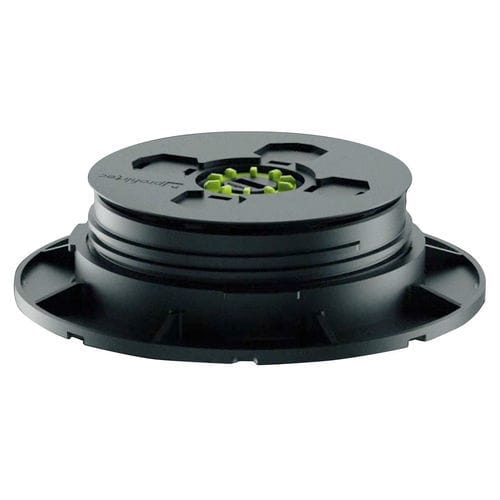

Polypropylene raised floor pedestal - SUPAS - PROFILITEC - self-leveling / adjustable / adjustable
Polypropylene raised floor pedestal - SUPAS - PROFILITEC - self-leveling / adjustable / adjustable
Add to favorites
Compare this product
Go to the PROFILITEC website for more information

Characteristics

Materials
polypropylene
Technical characteristics
self-leveling, adjustable
Other characteristics
adjustable, for tile, self-leveling, stackable
Market
commercial

Description

Key features
  • Adjustable pedestal with switchable self-leveling and fixed modes via the pre-included rotating ring.
  • Self-leveling head compensates slopes up to 5% when set to self-leveling mode.
  • Head accepts standard installation accessories: 2 mm spacers, 4 mm spacers, head for wooden beam and aluminium joist (aluminium joist used with 4 mm spacers).
  • Base includes drainage holes and four pre-cut lines on the lower side for easy cutting at corners or perimeters.
  • Height can be increased using the SUPAR stackable extension ring.


Available material / version
  • Polypropylene – standard version.


Accessories and compatibility
  • Compatible accessories: 2 mm and 4 mm spacers, head for wooden beam, aluminium joist (use with 4 mm spacers).
  • Designed for paving panels and tiles in raised (floating) floor systems.
  • SUPAR stackable rings for greater elevations.


Sizing / ordering
  • Refer to product table for H/H1 (mm) and article code.


Technical characteristics / specifications
  • Article: SUPAS
  • Brand: Uptec
  • Material: Polypropylene
  • Height range (H / H1): 43 / 58 mm
  • Base diameter: 190 mm
  • Head diameter: 130 mm
  • Modes: Self-leveling and fixed (switchable via included rotating ring)
  • Self-leveling compensation: up to 5% slope
  • Drainage: holes on base for water flow
  • Installation aid: 4 pre-cut lines on lower side for cutting at corners/perimeters
