Concrete paver BAND2

outdoorfor outdoor useflamed

Description
PAVING BAND 66×15 ep.25 (maximum) = 3 pavers 15×21
FLAMED STONE APPEARANCE
Sales unit (U) = ML

Geometry and packaging

• Length: 66 cm
• Width: 15 cm
• Thickness (cm): 8 / 12 / 25
• Weight (kg/U): 27 / 41 / 85
• Packaging (U/pallet): 15.6 (one-way pallet 110×90)

Mechanical specifications

• Splitting tensile strength (MPa): 4.7
• Compressive strength (MPa): 50 (test specimen 16×32)
• Water absorption: < 6%
• Freeze/thaw mass loss: 0.758 kg/m²
• Slip resistance: average min 48
• Standards: NF – EN – 1338
• (*) indicative value obtained on an equivalent range product

Installation

• The indications of standard NF P 98 335 and CCTG fascicle 29 prevail.
• Installation is carried out between +5°C and +30°C on a sound substrate. It is similar to the installation of an edging.
• Mortars are prepared or supplied progressively as work advances.
• The bedding mortar is leveled with a straightedge and laid progressively. Its thickness should be as uniform as possible (~4 cm).
• Paving bands should be dampened, particularly in hot weather.
• When laying, mix products of different colors and shades from different batches.
• It is recommended to fill the joints created on the paving bands.

Maintenance

• The products are designed to reproduce natural surface textures; original colors are very stable and require minimal maintenance.
• Applying a mineralizing treatment will facilitate cleaning and prolong the original surface appearance.
• Not recommended: high-pressure cleaners or acidic products (risk of irreversible alterations).
• De-icing salts should be used in moderation, without excessive stagnant residues.

Appearance

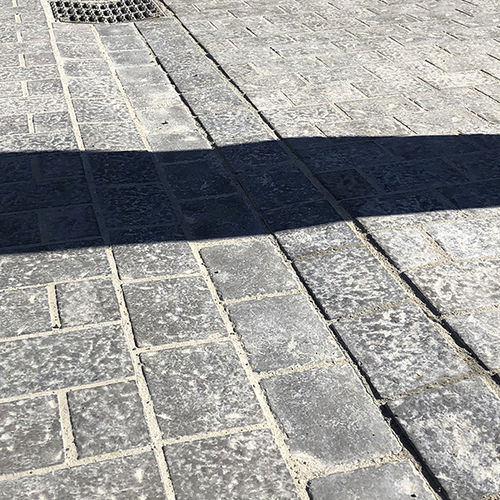

Flamed stone appearance (old stone effect)

Characteristics / technical specifications

• Product: Paving band
• Model / commercial designation: Paving band 66×15
• Appearance: flamed stone / old stone appearance
• Sales unit: ML
• Dimensions (L x W): 66 cm x 15 cm
• Thickness: 8 / 12 / 25 cm
• Weight per unit: 27 / 41 / 85 kg
• Packaging: 15.6 U/pallet (one-way pallet 110×90)
• Splitting tensile strength: 4.7 MPa
• Compressive strength: 50 MPa (test specimen 16×32)
• Water absorption: < 6%
• Freeze/thaw resistance: 0.758 kg/m²
• Slip resistance: average min 48
• Standard: NF – EN – 1338
