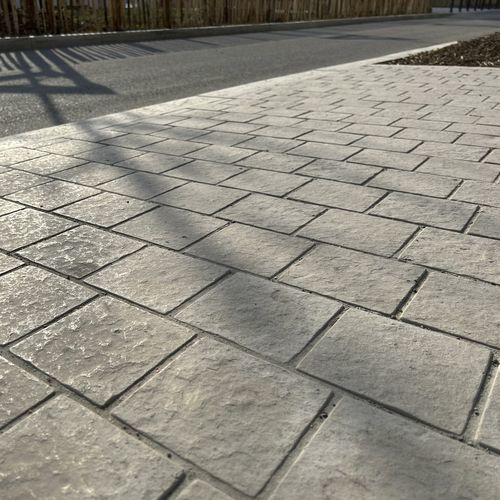

Stone paver PAF10

outdoorfor parking lotstreet

DESCRIPTION
ROAD PAVING STONES 12×12 cm
FLAMED STONE FINISH

General information

• Unit of sale (U): m²
• Equivalence: 1 m² = 70 pavers
• Packaging (U/pallet): 8 (disposable pallet 110×90)

Geometry

• Length (cm): 12
• Width (cm): 12
• Thickness (cm): 8
• Weight (kg/U): 177

TECHNICAL SPECIFICATIONS

• Split tensile strength (MPa): 4
• Water absorption: < 6%
• Freeze/thaw performance: 0.2 kg/m²
• Slip resistance: medium 54
• Regulatory framework: NF – EN – 1338 ; Fascicule 29 of 30 May 2012 ; NF – 98 335

INSTALLATION

• The instructions provided by standard NF P 98 335 and fascicule 29 of the CCTG take precedence.
• Installation is carried out between +5°C and +30°C on a sound substrate.
• Mortars are prepared or supplied as work progresses.
• The bedding mortar is leveled with a straightedge and laid progressively. Its thickness should be as uniform as possible (~4 cm).
• Pavers must be moistened, particularly in hot periods.
• During laying, mix products of different colours and shades from different batches.
• Joints are left between pavers; joints are finished with mortar not earlier than 24 h after laying and no later than 72 h.
• Joint width should be as small as possible but not less than 5 mm.
• Immediately after jointing, the pavement must be cleaned to avoid any film or deposits on the paver surface.
• Expansion joints must be provided in accordance with normative requirements (10 m linear or 20 m²).

MAINTENANCE

• All products of the Replik range are designed to preserve the intended surface aspects; original colours are very stable.
• Minimal maintenance is required; natural patina occurs over time.
• Application of a mineralising agent will facilitate cleaning and prolong the life of the original surface appearance.
• Not recommended: use of high-pressure washers or acidic products (risk of irreversible alterations).
• De-icing salts should be used in reasonable amounts, avoiding excessive stagnant residues.

Characteristics / technical specifications

• Unit of sale: m²
• Equivalence: 1 m² = 70 pavers
• Dimensions (L x W x thickness): 12 cm x 12 cm x 8 cm
• Weight per unit: 177 kg
• Packaging per pallet: 8 U (disposable pallet 110×90)
• Split tensile strength: 4 MPa
• Water absorption: < 6%
• Freeze/thaw performance: 0.2 kg/m²
• Slip resistance: medium 54
• Standards: NF – EN – 1338 ; Fascicule 29 of 30 May 2012 ; NF – 98 335
