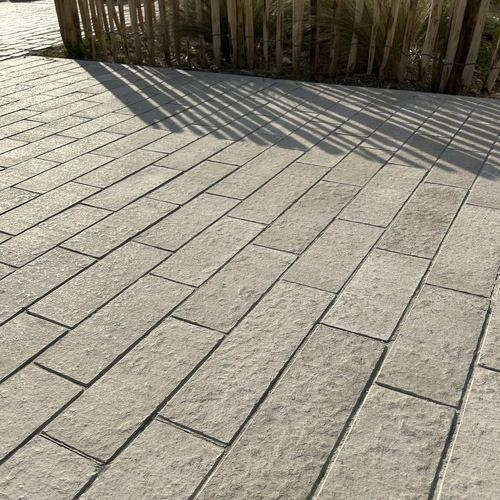

Natural stone paver PAF08

for outdoor usestreetflamed

DESCRIPTION
PAVING BLOCK FOR ROADWAYS 12×30 cm
FLAMED STONE FINISH

• Unit of sale (U): m²
• Equivalence: 1 m² = 28 paving units

DIMENSIONS

• Length: 30 cm
• Width: 12 cm
• Thickness: 8 cm
• Weight (kg/U): 173

PACKAGING
Packaging (U/pallet): 7.6 (disposable pallet 110×90 cm)

APPEARANCE
Flamed stone finish

MECHANICAL SPECIFICATIONS

• Breaking by splitting (MPa): 4
• Water absorption: < 6%
• Frost/de-icing loss: 0.2 kg/m²
• Slip resistance: average 54

STANDARDS

• NF – EN – 1338
• Fascicle 29 of 30 May 2012
• NF – 98 335

INSTALLATION

• Instructions given by standard NF P 98 335 and fascicle 29 of the CCTG take precedence.
• Installation should be carried out between +5°C and +30°C on a sound substrate.
• Mortars are prepared or supplied as work progresses.
• The bedding mortar layer is leveled with a screed and applied progressively; approximate thickness 4 cm, kept as uniform as possible.
• Paving units should be moistened, especially in hot weather.
• Mix products of different colours/levels from different batches during installation to ensure uniform appearance.
• Joints are left between paving units; joints are filled with mortar between 24 h and 72 h after laying; minimum width 5 mm depending on geometry.
• Clean the pavement immediately after jointing to avoid residues or film on the surface of the paving units.
• Provide expansion joints in accordance with normative requirements (10 linear m or 20 m²).

MAINTENANCE

• Original colours are stable; minimal maintenance and natural patina over time.
• Applying a mineralising treatment facilitates cleaning and preserves the original surface appearance.
• Not recommended: high-pressure washers and acidic products (risk of irreversible alterations).
• Use de-icing salts in reasonable quantities, avoiding excessive stagnant residues.

Technical characteristics / specifications

• Unit of sale: m²
• Equivalence: 1 m² = 28 paving units
• Dimensions: 30 x 12 x 8 cm
• Weight (kg/U): 173
• Packaging: 7.6 U/pallet (disposable pallet 110×90 cm)
• Breaking by splitting: 4 MPa
• Water absorption: < 6%
• Frost/de-icing loss: 0.2 kg/m²
• Slip resistance: average 54
• Standards: NF-EN-1338; Fascicle 29 of 30 May 2012; NF-98 335
