Recessed downlight RAYM

built-inrecessed ceilingLED

Product overview

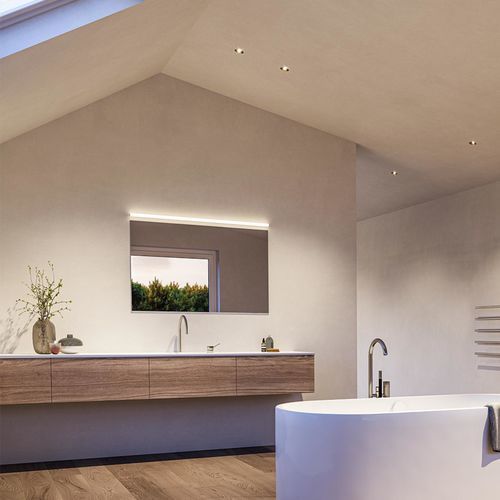

The RAYM downlight collection consists of two light-intense LED modules that can be swivelled and rotated. Individually configurable, they are suited for use as individual lights or coordinated installations for professional interior design. Suitable for residential applications and representative lighting concepts in boutiques, medical practices, hotels or restaurants. The module remains visually invisible even when pivoted and the product was awarded the Red Dot Award 2021.

Product highlights

• Design: Developed by RIBAG Design Studio — combines aesthetics with functionality and excellent lighting effects; rotatable and swiveling, space-saving and energy-efficient.
• Splash water protection: With optionally available cover glass, RAYM achieves IP44 protection and is suitable for covered outdoor areas and wet zones.
• Simple wiring: LED modules can be connected individually with a simple plug system to the control gear; dual and triple applications can be connected to a single suitable control gear; optionally available extension cable increases placement flexibility in the ceiling cavity.
• Tool-free assembly: Clever snap-in principle (EasyClick) for fast, tool-free installation; modules snap into mounting frames and allow 358° rotation and 30° tilt.
• Multiple applications: Available as single, double and triple applications (e.g., RAYM 700 single, 2-gang, 3-gang); modules are individually adjustable.
• Replaceable reflector trims: Reflector trims are easily replaceable and available in multiple finishes and colours to match interior design.
• High-precision light control: Reflectors developed by Bartenbach provide precise cut-off and excellent glare control with three selectable beam angles.
• Brilliant light & tunable white: High color rendering for optimum visual comfort; tunable white from 2200K to 5000K enables a wide range of atmospheres from warm to cold white.

Product variants

• RAYM — LED-Modules 700: recessed spotlights with mounting ring
• RAYM — LED-Modules 700: recessed spotlights with mounting frame
• RAYM — LED-Modules 700: recessed spotlights with mounting frame 2-gang
• RAYM — LED-Modules 700: recessed spotlights with mounting frame 3-gang
• RAYM — LED-Modules 1400: recessed spotlights with mounting ring
• RAYM — LED-Modules 1400: recessed spotlights with mounting frame

Appearance & optional accessories

• Replaceable reflector trims available in multiple finishes: white matt, black matt, white aluminium, rosé gold, sand gold.
• Optionally available cover glass for IP44 protection.
• Optional extension cable for increased installation flexibility within ceiling cavities.

Lighting technology

• Miniaturised, efficient LED modules recessed optically so the LED source remains hidden even when swivelled.
• Three selectable beam angles / light distributions with precise cut-off (examples cited: Spot 30°, Flood 50°, Superspot 16°).
• High lumen output modules (examples on page reference 1500 lm and high-output performance).
• Good glare control (UGR values referenced) and high color rendering (CRI 90).

Technical characteristics / specifications

• Brand: RIBAG
• Product family / model name: RAYM
• LED module options: LED-Modules 700 and LED-Modules 1400
• Applications: single, double and triple module configurations (e.g., 1-gang, 2-gang, 3-gang)
• Swivel / rotation: modules rotate 358° and tilt 30°
• Installation: snap-in mounting frames (tool-free), ready-to-plug-in modules and control gear; EasyClick mounting
• Wiring: simple plug system; dual/triple setups can be powered from one suitable control gear; optional extension cable available
• Ingress protection: IP44 achievable with optionally available cover glass (suitable for covered outdoor areas and wet zones)
• Reflectors: developed in cooperation with Bartenbach; precise cut-off, excellent glare control
• Beam angles / distributions: multiple selectable beam angles (Spot 30°, Flood 50°, Superspot 16° referenced)
• Color rendering and tunability: high CRI (e.g., CRI 90); tunable white range approximately 2200K–5000K
• Luminous flux examples: high lumen output modules referenced (example: 1500 lm)
• Finish options: reflector trims in white matt, black matt, white aluminium, rosé gold, sand gold
• Awards: Red Dot Award 2021
