Recessed downlight SPARK

recessed ceilingfor ceilingLED

Overview
Miniaturised recessed luminaire delivering precise light distribution and high visual comfort. Developed with high-precision Bartenbach reflectors and designed by RIBAG Design Studio, SPARK is intended for professional residential and commercial lighting where glare control and accurate beam shaping are required.

Product highlights

• Design: RIBAG Design Studio.
• High-precision reflectors from Bartenbach Lichtlabor for precise cut-off and effective glare control.
• Excellent visual comfort with high colour rendering and clearly defined light cones.
• Tunable white: adjustable light colour from 2200 K to 5000 K for mood and task lighting.
• Multiple optics and cover options to support ambient, accent and wall illumination.

Mounting options

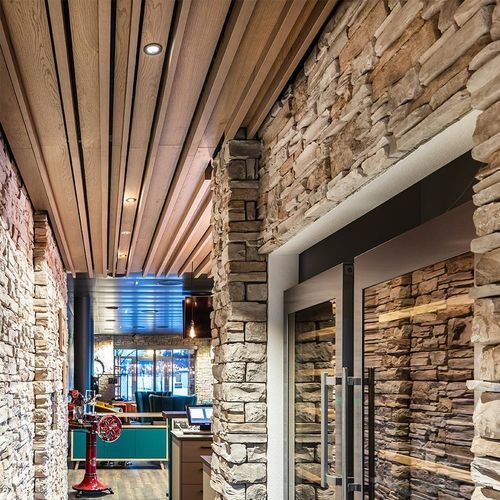

Suitable for ceilings with three hole diameters (60 / 68 / 75 mm). Compatible with cavity ceilings with a rim and with concrete ceilings using encased housing Kaiser Halox-0 No. 1281-30. Rimless installation variants available for wooden ceilings.

Cover rings / Colours
Cover rings available in five finishes to match interiors: black, white, white aluminium, rosé gold, sand gold.

Light distributions
Available distributions with precise cut-off via Bartenbach reflectors: Spot 16°, Spot 30°, Flood 50°, Wide flood 70°, Wallwasher. Superspot 16° available for very narrow beams.

Variants

• LED-Module 800 — recessed spotlights with round cover (rimless variants for wooden ceilings available).
• LED-Module 1400 — recessed spotlights with round cover (rimless variants for wooden ceilings available).

Applicable usage
Designed for professional lighting tasks in residential and commercial interiors requiring high glare control, precise light shaping and high lumen output.

Technical specifications

• Mounting: For cavity ceilings with rim and for concrete ceilings with encased housing Kaiser Halox-0 No. 1281-30; rimless installation for wooden ceilings.
• Housing: Die-cast aluminium, polyamide V0.
• Optics: Bartenbach reflectors in 16°, 30°, 50°, 70° or wallwasher. Toolless installation with various rims (rims ordered separately).
• Unified Glare Rating (UGR): Typically UGR ≤10 (16° / 30°), UGR ≤16 (50°), UGR ≤25 (70°) for LED-Module 800. Values vary by module and optic for LED-Module 1400 as per documentation.
• Lamps: Integrated LED, CRI >90; nominal colour temperatures 2700 K, 3000 K or 4000 K. Tunable white option approx. 2200 K–5000 K.
• Service life: 50,000 h L90 B10 (Ta 25° C).
• Control gear: PS 230 V / 50 Hz. Constant current drivers: 450 mA (18/36 V) standard; 500 mA DT8 for some 700 variants; 800 mA for 1400 variant (control gear ordered separately).
• Protection class: Class III.
• Ingress protection: IP 20 standard; IP 54 with cover glass (cover glass ordered separately).
• Energy efficiency class: D.
• Cover rings: black, white, white aluminium, rosé gold, sand gold.
• Available distributions: Spot 16° / Spot 30° / Flood 50° / Wide flood 70° / Wallwasher / Superspot 16°.
• Recommended applications: Ambient lighting, accent lighting, precise wall illumination in residential and commercial interiors.
