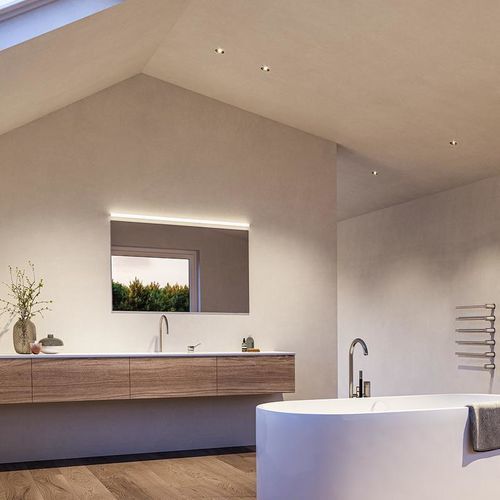

Recessed downlight RAYM

LEDIP44for outdoor use

Overview The RAYM downlight collection consists of two light-intense LED modules that can be swivelled and rotated. Individually configurable, they are suited for use as individual lights or coordinated installations for professional interior design. Suitable in residential applications, boutiques, medical practices, hotels and restaurants.

Product highlights

• Design: RIBAG Design Studio – combines aesthetics with functionality and excellent lighting effects; the module remains invisible even when pivoted.
• Splash water protection: optionally available cover glass achieves IP44, suitable for covered outdoor areas and wet zones.
• Simple wiring: ready-to-plug-in LED modules; dual and triple applications can be connected with a single suitable control gear; optional extension cable for placement flexibility within the ceiling cavity.
• Tool-free assembly: clever snap-in principle (EasyClick) for fast, tool-free mounting; modules snap into mounting frames and can be rotated and tilted.
• Mechanical adjustment: modules rotate up to 358° and tilt up to 30°.
• Multiple applications: available as single, double and triple applications; modules can be adjusted individually for targeted lighting.
• Easily replaceable reflector trims: reflector trims snap in and can be changed for individual ceiling design; several color options are available.
• Three light distributions with precise cut-off (developed with Bartenbach): Spot 30°, Flood 50°, Superspot 16° for precise light control and glare reduction.
• Brilliant light with high color rendering and excellent glare control for high visual comfort.
• Tunable white: adjustable color temperature range from 2200K to 5000K for flexible mood and task lighting.

Product variants

• LED-Modules 700 – Recessed spotlights with mounting ring
• LED-Modules 700 – Recessed spotlights with mounting frame
• LED-Modules 700 – Recessed spotlights with mounting frame 2-gang
• LED-Modules 700 – Recessed spotlights with mounting frame 3-gang
• LED-Modules 1400 – Recessed spotlights with mounting ring
• LED-Modules 1400 – Recessed spotlights with mounting frame

Awards

• Red Dot Award 2021 (design award for the intelligent luminaire design).

Technical specifications

• Optical system: high-precision reflectors developed with Bartenbach for exact light control and excellent glare control.
• Light sources: two light-intense LED modules per luminaire (modules individually adjustable).
• Beam angles / light distributions: Spot 30°, Flood 50°, Superspot 16° (precise cut-off).
• Color rendering: high CRI (icon on page indicates CRI 90).
• Glare control: designed for low UGR (icon indicates UGR 16).
• Luminous flux: example icon indicates 1500 lm (per module/configuration dependent).
• Tunable white range: 2200 K – 5000 K (Tunable White).
• Mechanical adjustment: rotation up to 358°, tilt up to 30°.
• Ingress protection: with optional cover glass IP44 (splash water protection for covered outdoor/wet zones).
• Mounting / installation: mounting ring or mounting frame options; snap-in (EasyClick) for tool-free assembly; mounting frames attach to ceiling and modules click into place.
• Electrical / cabling: ready-to-plug-in modules with simple plug system; dual and triple configurations can share one control gear; optional extension cable available for flexible placement of modules within ceiling cavity.
• Variants: single, double and triple module luminaires; LED-Modules 700 and 1400 families available.
• Reflector trims: interchangeable reflector trims in multiple finishes (examples shown: white, black, white aluminium, rosé gold, sand gold).
