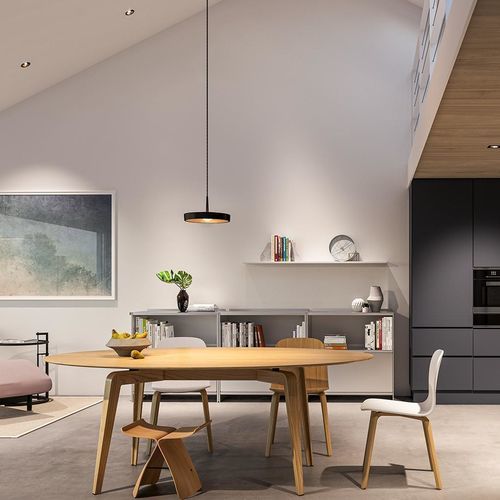

Recessed ceiling downlight RAYM

LEDIP44inside

Overview
The RAYM downlight collection comprises two light‑intense LED modules that can be swivelled and rotated individually. Configurable as single, double or triple fittings, RAYM is designed for professional interior lighting in residential settings and representative spaces such as boutiques, medical practices, hotels and restaurants. The optical design keeps the module visually recessed and invisible even when tilted. Awarded the Red Dot Award 2021.

Product highlights

• Design by RIBAG Design Studio; Red Dot Award 2021
• Two compact LED modules per luminaire, independently swivelled and rotatable
• With optional cover glass achieves IP44 (splash water protection) for covered outdoor areas and wet zones
• Ready‑to‑plug‑in device for simple wiring; dual and triple units can be powered from one suitable control gear; optional extension cable for flexible placement in the ceiling cavity
• Snap‑in mounting for fast, tool‑free installation; modules rotate 358° and tilt 30°
• Replaceable reflector trims in multiple colours for customised ceiling design
• Available as single, double and triple configurations; modules can be individually aligned
• High‑precision Bartenbach reflectors with three selectable beam angles (Spot, Flood, Superspot) for precise light placement and clean cut‑off
• High colour rendering (CRI up to 90) and good visual comfort (UGR 16)
• Tunable white range 2200K–5000K for varied moods and tasks
• High lumen output suitable for demanding professional lighting (up to approx. 1500 lm per module indicated on product pages)

Product variants

• RAYM — LED‑Module 700 (recessed spotlight with mounting ring)
• RAYM — LED‑Module 700 (recessed spotlight with mounting frame)
• RAYM — LED‑Module 700 (recessed spotlight with mounting frame, 2‑gang)
• RAYM — LED‑Module 700 (recessed spotlight with mounting frame, 3‑gang)
• RAYM — LED‑Module 1400 (recessed spotlight with mounting ring)
• RAYM — LED‑Module 1400 (recessed spotlight with mounting frame)

Lighting technology
The downlights are built around miniaturised, efficient LED modules combined with high‑precision reflectors developed by Bartenbach. The optical system ensures the LED remains visually recessed even when pivoted. Three selectable beam distributions (Spot, Flood, Superspot) allow precise placement of light and clearly defined light cones.

Technical specifications

• Model: RAYM
• Designer: RIBAG Design Studio
• Award: Red Dot Award 2021
• LED modules: LED‑Module 700 and LED‑Module 1400
• Mounting: recessed; mounting ring or mounting frame; single, double and triple configurations
• Adjustment: modules rotate 358° and tilt 30°
• Protection class: with optional cover glass achieves IP44 (splash water protection) for covered outdoor areas and wet zones
• Wiring: ready‑to‑plug‑in; dual/triple connections can run from one control gear; optional extension cable
• Assembly: snap‑in click system for tool‑free installation
• Reflectors: developed by Bartenbach; three beam angles with precise cut‑off; replaceable reflector trims in multiple colours
• Light quality: tunable white 2200K–5000K; CRI up to 90; UGR 16
• Lumen output: high lumen classes (product imagery indicates up to approx. 1500 lm per module)
• Suitable applications: residential, boutiques, medical practices, hotels, restaurants, covered outdoor and wet zones (with cover glass)
• Downloads: digital brochure and technical documentation available from the product's download centre
