Recessed downlight SPARK
recessed ceilingLEDround

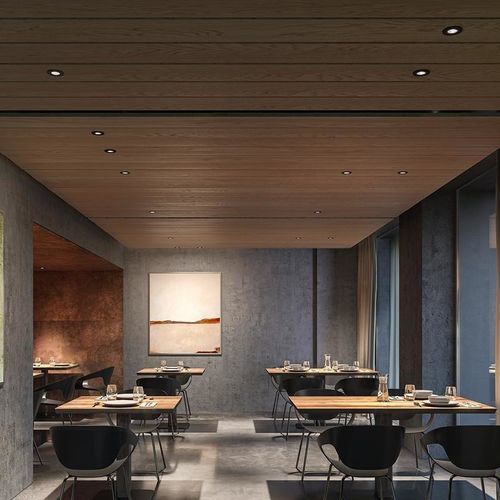

Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 2
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 3
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 4
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 5
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 6
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 7
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 8
Recessed downlight - SPARK - RIBAG Licht AG - recessed ceiling / LED / round - image - 9
Add to favorites
Compare this product

Characteristics

Type
recessed, recessed ceiling
Light source
LED
Shape
round
Protection class
IP20, IP54
Interior/exterior use
interior
Applications
commercial, home
Material
cast aluminum, polyamide
Color
white, black, silver-colored, gold-colored, ocher
Style
contemporary
Number of lights
single
Length

Max.: 75 mm
(3 in)

Min.: 60 mm
(2 in)

Width

Max.: 75 mm
(3 in)

Min.: 60 mm
(2 in)

Color temperature

Max.: 5,000 K

Min.: 2,200 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 90 unit

Description

Product highlights
Miniaturised recessed downlight SPARK by RIBAG with Bartenbach Lichtlabor reflectors. Designed for efficient, low-glare illumination in residential and commercial interiors. Offers precise light distribution and high operating efficiency for professional lighting concepts.

Mounting options
Suitable for ceilings with hole diameters Ø 60 / 68 / 75 mm. Compatible with cavity ceilings with rim and with concrete ceilings using encased housing Kaiser Halox-0 No. 1281-30. Rimless installation possible for wooden ceilings.

Cover rings
  • Black
  • White
  • White aluminium
  • Rosé gold
  • Sand gold


Light distributions
  • Superspot 16°
  • Spot 30°
  • Flood 50°
  • Wide flood 70°
  • Wallwasher


Lighting features
High colour rendering (CRI >90), excellent glare control with UGR values down to ≤10 for some optics. Tunable white from 2200 K to 5000 K and high lumen output options for demanding applications.

Technical specifications
  • Model / series: SPARK
  • Brand: RIBAG
  • Design: RIBAG Design Studio; reflectors developed by Bartenbach Lichtlabor
  • Mounting: Ceiling installation for hole diameters Ø 60 / 68 / 75 mm; suitable for cavity ceilings with rim; suitable for concrete ceilings with encased housing Kaiser Halox-0 No. 1281-30; rimless installation for wooden ceilings
  • Lamp housing: Die-cast aluminium, polyamide V0
  • Optics: Highly precise Bartenbach reflectors 16°, 30°, 50°, 70° or wallwasher; UGR ≤10 (16°/30°), ≤16 (50°), ≤25 (70°) for some variants; toolless installation possible with various rims (ordered separately)
  • Lamps: Integrated LEDs, CRI >90; available colour temperatures 2700 K, 3000 K or 4000 K; tunable white 2200–5000 K (select variants)
  • Service life: 50'000 h L90 B10 (Ta 25° C)
  • Control gear: PS 230 V/50 Hz; constant current 450 mA (18/36 V), 500 mA DT8 for Recessed spotlight 700, 800 mA for Recessed spotlight 1400 (order separately)
  • Lamp protection class: III
  • Protection level: IP 20; IP 54 with cover glass (order separately)
  • Energy efficiency class: D
