Recessed downlight RAYM

LEDroundIP44

Overview The RAYM recessed adjustable LED downlight features two high-output LED modules that can be individually swiveled and rotated, allowing use as single luminaires or coordinated multi-head installations for architectural interior projects. Suitable for residential interiors, boutiques, hotels, restaurants and professional environments where precise, flexible accent lighting is required.

Product highlights

• Design by RIBAG Design Studio; clean architectural aesthetic combined with functional adjustability.
• Individually rotatable (358°) and tiltable (30°) LED modules while remaining visually recessed when pivoted.
• Red Dot Award 2021 recipient.

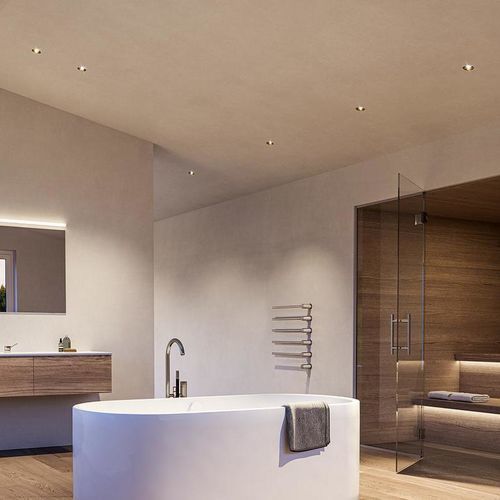

• Optional cover glass (IP44) for splash protection in covered outdoor areas and wet zones.
• High-precision reflectors developed by Bartenbach for superior glare control and well-defined light distribution.

Key features

• Two compact, high-intensity LED modules per luminaire; modules adjustable independently for precise accenting.
• Plug-and-play LED modules with simple connection system; dual and triple configurations can share one suitable control gear.
• EasyClick snap-in mounting frames for fast, tool-free installation and secure module fixing.
• Module movement: 358° rotation / 30° tilt for extensive aiming flexibility.
• Replaceable reflector trims in multiple finishes (e.g. white, black, white aluminium, rosé gold, sand gold) for customised ceiling appearance.
• Available as single, double and triple configurations (LED‑Module 700 and LED‑Module 1400 families).

Product variants

• RAYM — LED‑Module 700: recessed spot with mounting ring.
• RAYM — LED‑Module 700: recessed spot with mounting frame.
• RAYM — LED‑Module 700: recessed spot with 2-gang mounting frame.
• RAYM — LED‑Module 700: recessed spot with 3-gang mounting frame.
• RAYM — LED‑Module 1400: recessed spotlight variants (mounting ring / mounting frame).

Installation & wiring

• Simple wiring with plug-in connections between LED modules and control gear for quick on-site installation.
• Optional extension cable for flexible positioning within the ceiling cavity.
• Tool-free snap-in EasyClick assembly for mounting frames and modules to reduce installation time.

Lighting technology & performance

• Selectable beam angles with precise cut-off (examples: Superspot 16°, Spot 30°, Flood 50°) for targeted accent lighting or broader wash effects.
• Excellent glare control and accurately shaped light cones thanks to Bartenbach reflectors.
• High color rendering (examples shown CRI 90) for faithful material and surface presentation.
• Tunable white range 2200 K–5000 K for adaptable atmospheres from warm to cool white.

Technical specifications

• Manufacturer: RIBAG (RIBAG Licht AG).
• Product family / model: RAYM.
• Module rotation: 358°.
• Module tilt: 30°.
• IP protection with optional cover glass: IP44 (splash protection).
• Connection: ready-to-plug-in LED modules; dual/triple configurations possible on a single control gear.
• Assembly: EasyClick snap-in principle, tool-free installation.
• Reflectors: developed by Bartenbach; replaceable reflector trims in multiple finishes.
• Photometric examples: CRI 90, UGR 16, approx. 1500 lm (values depend on configuration).
• Tunable white: 2200 K–5000 K.
• Available module sizes: LED‑Module 700 and LED‑Module 1400 (single / multi-gang variants).
• Awards: Red Dot Award 2021.
