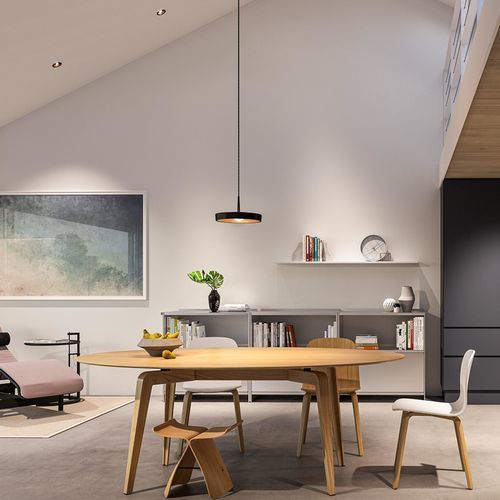

Recessed downlight RAYM

built-inrecessed ceilingfor ceiling

Overview
The RAYM downlight collection comprises two light‑intense LED modules that can be individually swivelled and rotated. Configurable as single, double or triple installations, the modules are designed for professional interior lighting in residential spaces, boutiques, medical practices, hotels and restaurants. The design conceals the LED module even when pivoted and received the Red Dot Award 2021.

Product highlights

• Two compact, light‑intense LED modules — each rotatable and swivelable
• High lumen output combined with precise glare control
• Available as single, double and triple recessed units
• Optional cover glass for splash water protection (IP44)
• Replaceable reflector trims in multiple colours for customised ceiling design
• High‑precision Bartenbach reflectors with three selectable beam distributions
• Tunable white from 2200 K to 5000 K and high colour rendering (CRI up to 90)

Splash water protection
With the optional cover glass, RAYM achieves IP44, making it suitable for covered outdoor areas and wet zones.

Installation & wiring
Each LED module connects via a simple plug system to the control gear. Dual and triple configurations can be powered from a single suitable driver. An optional extension cable increases placement flexibility within the ceiling cavity.

Assembly
Clever snap‑in principle enables fast, tool‑free assembly: after fixing the mounting frames to the ceiling, the modules snap into place and can be rotated 358° and tilted 30°. Reflector trims snap in for easy replacement.

Applications
Suitable for residential rooms, boutiques, medical practices, hotels, restaurants and professional project lighting where precise light control and high visual comfort are required.

Reflector trims & finishes

• Interchangeable reflector trims and mounting accessories in various colours
• Examples of finishes: white matt, black matt, white aluminium, rosé gold, sand gold

Product variants

• RAYM – LED‑Modules 700: recessed spotlights with mounting ring
• RAYM – LED‑Modules 700: recessed spotlights with mounting frame
• RAYM – LED‑Modules 700: recessed spotlights with mounting frame 2‑gang
• RAYM – LED‑Modules 700: recessed spotlights with mounting frame 3‑gang
• RAYM – LED‑Modules 1400: recessed spotlights with mounting ring
• RAYM – LED‑Modules 1400: recessed spotlights with mounting frame

Lighting technology
High‑precision reflectors developed with Bartenbach deliver precise light distribution and excellent glare control. Available beam distributions include spot, flood and superspot with precise cut‑off. High colour rendering (CRI up to 90) and tunable white options allow flexible mood and task lighting.

Technical specifications

• Manufacturer: RIBAG (RIBAG Licht AG)
• Collection: RAYM (downlight collection)
• Modules: two light‑intense, rotatable and swivelable LED modules (configurations: single/double/triple)
• Rotation/tilt range: 358° rotation, 30° tilt
• Mounting: snap‑in mounting frames, tool‑free assembly; mounting ring or mounting frame options
• Electrical connection: plug‑in LED modules; dual/triple can be connected to one control gear; optional extension cable
• IP protection: up to IP44 with optional cover glass (splash water protection)
• Optics/reflectors: high‑precision Bartenbach reflectors; three selectable beam angles (spot, flood, superspot)
• Glare control: very good (example UGR 16 for certain configurations)
• Colour rendering: high (CRI up to 90)
• Lumen output: examples referenced on site (e.g. ~1500 lm, variant‑dependent)
• Tunable white: 2200 K – 5000 K
• Replaceable reflector trims in multiple finishes
• Award: Red Dot Award 2021
