Recessed downlight RAYM

built-inrecessed ceilingLED

Overview
The RAYM downlight collection comprises two LED module sizes (700 and 1400) with high luminous intensity. Modules can swivel and rotate and are configurable as single, double or triple units for individual luminaires or coordinated installations in professional interiors. The luminaire geometry keeps the module visually discreet when pivoted. RAYM received the Red Dot Award 2021.

Key features

• Design: Developed by RIBAG Design Studio — integration of form and function with compact module dimensions and energy-efficient LED technology.
• Splash water protection: Optional cover glass upgrades protection to IP44 for covered outdoor areas and wet zones.
• Simple wiring: Plug-in LED modules with a simple connector system. Dual and triple configurations can be powered from a single suitable control gear. Optional extension cable available for installation flexibility inside the ceiling cavity.
• Snap-in assembly: EasyClick snap-in principle for fast, tool-free installation: mounting frames attach to the ceiling and modules snap into place. Modules rotate 358° and tilt 30°. Reflector trims snap in and are replaceable.
• Multiple configurations: Available as single, double and triple module variants (e.g. RAYM 700 single/double/triple). Each module can be individually rotated and tilted to direct light where required.
• Replaceable reflector trims: Reflector trims offered in several finishes to match interior concepts (examples: white matt, black matt, white aluminium, rosé gold, sand gold).
• High-precision optics: Bartenbach reflectors provide precise light control and effective glare management with three selectable beam angles and defined cut-off.
• Light quality & tunable white: High color rendering (CRI up to 90), good lumen output (examples up to ~1500 lm per module) and tunable white range 2200–5000 K to support varied lighting scenes.

Product variants (summary)

• RAYM — LED-Modules 700: recessed spotlights with mounting ring
• RAYM — LED-Modules 700: recessed spotlights with mounting frame
• RAYM — LED-Modules 700: recessed spotlights with mounting frame 2-gang
• RAYM — LED-Modules 700: recessed spotlights with mounting frame 3-gang
• RAYM — LED-Modules 1400: recessed spotlights with mounting ring
• RAYM — LED-Modules 1400: recessed spotlights with mounting frame

Applications

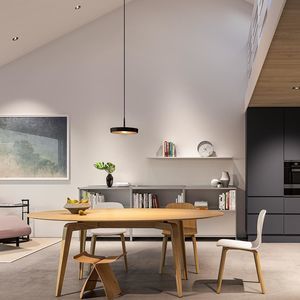

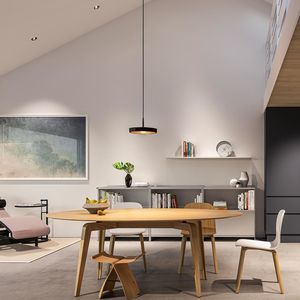

• Residential interiors

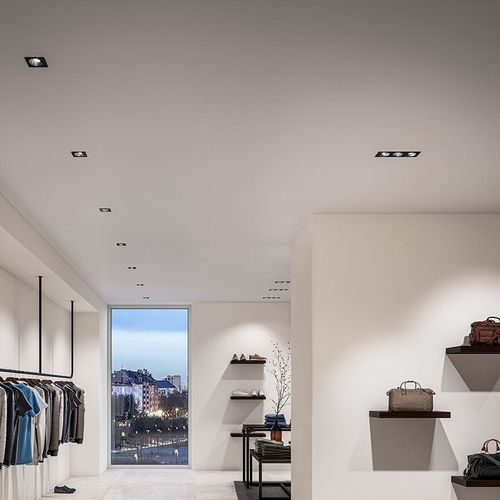

• Retail and boutiques
• Medical practices

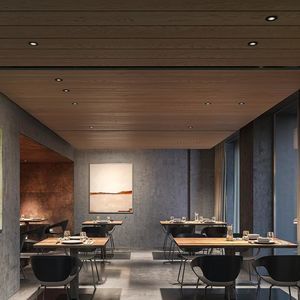

• Hotels and restaurants

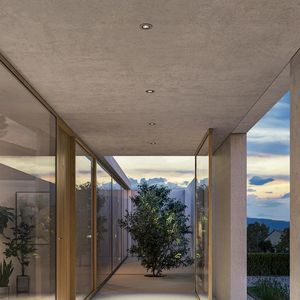

• Covered outdoor areas and wet zones (with cover glass)

Technical specifications

• Product family: RAYM
• Configuration: single, double, triple module variants
• LED modules: 700 and 1400 versions
• Optics: Bartenbach reflectors with three selectable beam angles (examples: Superspot 16°, Spot 30°, Flood 50°)
• Glare control: very good; example UGR values indicated (e.g. UGR 16)
• Color rendering: CRI up to 90
• Lumen output: examples up to ~1500 lm per module
• Tunable white: 2200 K–5000 K
• Mechanical adjustment: rotation 358°, tilt 30°
• Mounting: recessed installation with mounting ring or mounting frame; EasyClick snap-in for tool-free assembly
• Electrical: plug-in connection to control gear; dual/triple setups may share one control gear; optional extension cable
• IP protection: up to IP44 with optional cover glass
• Finish options: multiple reflector trims and mounting accessories (white matt, black matt, white aluminium, rosé gold, sand gold)
• Awards: Red Dot Award 2021
