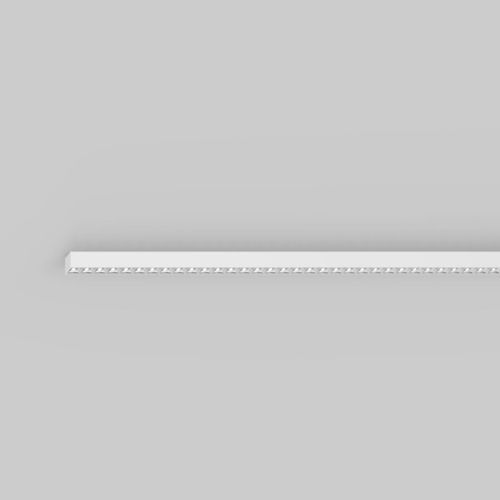

Surface-mounted light fixture MINO 25

LEDrectangularIP20

Quickinfo

• Colour temperature: 3000 K, 4000 K
• CRI: CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
• UGR: UGR ≤ 16, UGR ≤ 19
• Efficiency: up to 168 lm/W
• Lumen maintenance: L90 / 100000 h
• Cover options: Opal, Wideflood
• Dimming: DALI-2
• IP rating: IP20

Description
The MINO 25 is a surface-mounted luminaire with an extruded aluminium profile and angular, extremely slim cross-section (25 x 25 mm). Designed for ceiling mounting, the housing is delivered raw or powder coated and features no visible screws for a clean architectural finish. Optical options include a high-quality micro-faceted aluminium reflector for louver variants or recessed single LED light points with lens technology. Recessed light-point plane and specific lens optics provide effective glare control while maintaining high system efficacy. The luminaire can be delivered with an opal cover for completely homogeneous illumination. Driver is integrated into the housing; energy-efficient LEDs offer very good colour rendering.

Key features / marketing

• Extremely slim design (25 x 25 mm)
• High efficiency up to 168 lm/W
• Good glare reduction (recessed light point plane)
• Multiple optics: louver, spotline, opal
• Available in multiple housing colours and inset finishes

Products and codes (selection)

• 043-01010378X — MINO 25 louver surface, signal white housing, inset black reflector, 3000 K, CRI ≥ 90, 133 lm/W, length 1,004 mm — DALI-2
• 043-01011378X — MINO 25 louver surface, signal white housing, inset black reflector, 4000 K, CRI ≥ 90, 133 lm/W, length 1,004 mm — DALI-2
• 043-01016378X — MINO 25 louver surface, signal white housing, inset black reflector, 4000 K, CRI ≥ 80, 162 lm/W, length 1,004 mm — DALI-2
• 043-01026378X — MINO 25 louver surface, signal white housing, inset black reflector, 4000 K, CRI ≥ 80, 168 lm/W, length 2,004 mm — DALI-2
• 043-01031378X — MINO 25 louver surface, signal white housing, inset black reflector, 4000 K, CRI ≥ 90, 138 lm/W, length 2,754 mm — DALI-2
• 043-01036378X — MINO 25 louver surface, signal white housing, inset black reflector, 4000 K, CRI ≥ 80, 168 lm/W, length 2,754 mm — DALI-2

Available optics / cover types (examples)

• Louver (various inset finishes: chrome, dark chrome)
• Spotline (white / black variations)
• Opal (completely homogeneously illuminated)
• Cover categories: Opal, Wideflood

Colour & inset options (selection)

• Housing colours: signal white, signal black, aluminium raw
• Inset finishes: chrome, traffic white, jet black, black

Light distribution
Direct surface distribution (typical direct surface distribution).

Technical specifications

• Housing: extruded aluminium profile, angular design
• Dimensions: extremely slim (25 x 25 mm)
• Mounting: suitable for ceiling mounting
• Finish: surface raw or powder coated
• Reflector: micro-faceted, aluminium-vapourised reflector (for louver variants)
• Optics: recessed single LED light points with lens technology; inserted lenses with wide flood characteristic; symmetrical distribution or opal homogeneous cover
• Integrated converter (driver) in luminaire housing
• LEDs: energy-efficient, very good colour rendering
• Colour temperatures: 3000 K, 4000 K
• CRI: ≥ 80 or ≥ 90 (variants); 3 SDCM initial MacAdam for high-CRI variants
• UGR performance: ≤ 16 and ≤ 19 (depending on variant)
• Photometric efficiency: up to 168 lm/W (depending on variant)
• Lumen maintenance: L90 / 100000 h
• Dimming protocol: DALI-2 (variants)
• IP rating: IP20
• Length variants: 1,004 mm, 2,004 mm, 2,754 mm (examples)
• Available optics: Louver, Spotline, Opal (Wideflood)
• No visible screws for a clean ceiling aesthetic
