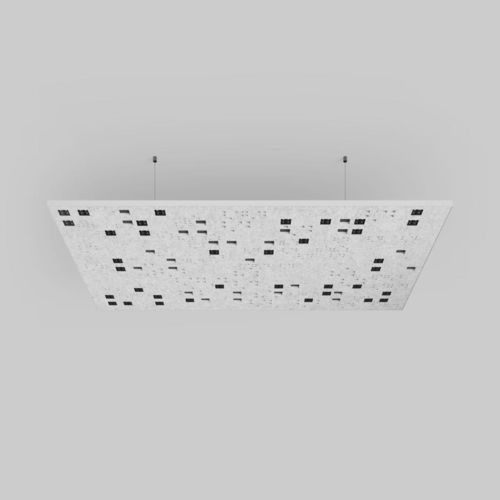

Pendant lamp FRACTAL CODE

metalcontemporarycorded

Product description
Luminaire body made of self-supporting PET felt with sound-absorbing properties; composed of at least 75% post-consumer recycled material. Constructed from two layers with surrounding extruded aluminium profile to provide a large acoustic surface. Pendant fitting with cable suspension; height adjustment without tools; includes feeder cable. Fractal code hole pattern inspired by nature, scientifically designed to reduce stress; integrated light insets within the fractal code pattern. Fitted with recessed single LED light points and inserted lenses providing wide flood radiation characteristic; special lens technology increases efficiency and optimises illumination for office workstations. Energy-efficient LEDs with very good colour rendering.

Quickinfo

• PET felt (≈75% post-consumer recycled material)
• Stress-reducing fractal code pattern
• High acoustic performance
• Colour temperatures: 3000 K, 3500 K, 4000 K, TW (tunable white)
• CRI ≥ 90, 3 SDCM
• UGR ≤ 19 / 65° ≤ 3000 cd/m²
• Up to 4320 lm | 127 lm/W
• L90 @ 50,000 h

Colour & variants

• Anthracite
• Marble grey / anthracite (two-coloured)
• Limestone / anthracite (two-coloured)

Availability
Available from Q2/27

Simple drawing & light distribution
Simple drawing available. Light distribution: direct (opal) with inserted lenses providing a wide flood radiation characteristic suitable for office workstations.

Design & features

• Fractal code hole pattern reduces stress and provides acoustic function
• Large sound-absorbing surface due to two-layer PET felt construction
• Pendant mounting with tool-free height adjustment
• Recessed single LED light points for good glare control
• Special lens technology for increased efficiency and wide flood characteristic
• Optimised for office illumination; two-coloured variants available; compatible with related fractal acoustic family products

Technical specifications

• Body material: self-supporting PET felt, at least 75% post-consumer recycled
• Construction: two-layer felt with surrounding extruded aluminium profile
• Acoustic: sound-absorbing properties; large sound-absorbing surface
• Mounting: pendant fitting with cable suspension; height adjustment without tools; includes feeder cable
• Optics: recessed single LED light points; inserted lenses with wide flood radiation; special lens technology for higher efficiency
• Light output: up to 4320 lm; efficacy up to 127 lm/W
• Light colour: 3000 K, 3500 K, 4000 K, tunable white (TW)
• Colour rendering: CRI ≥ 90; 3 SDCM
• Glare/standard: UGR ≤ 19; 65° ≤ 3000 cd/m²; DIN EN 12464-1 applicable
• Lifespan: L90 @ 50,000 h
• Variants: two-coloured options and finishes (anthracite, marble grey / anthracite, limestone / anthracite)
