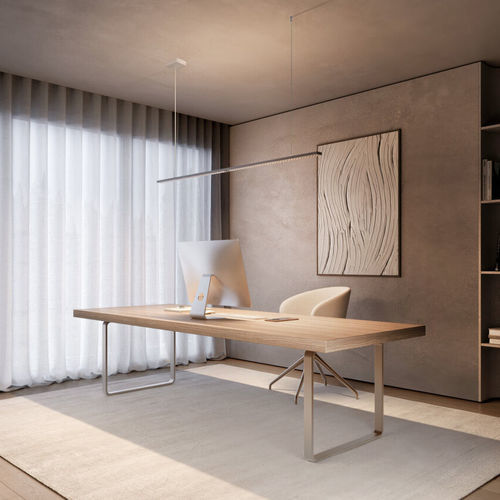

Pendant lamp ENVIVA

aluminumcontemporarycorded

Quickinfo

• Colour temperatures: 3000 K, 4000 K
• CRI options: CRI ≥ 80; CRI ≥ 90 / 3 SDCM (initial MacAdam)
• UGR classes: UGR ≤ 10, UGR ≤ 13, UGR ≤ 16
• Luminous flux (examples): up to ↓ 3,810 lm (indirect) / ↑ 3,700 lm (direct)
• Efficiency: up to 179 lm/W
• Lifetime: L90 / 100000 h
• Control / sensors: DALI-2, DALI-2 ESSENTIAL sensor
• IP rating: IP20

Description
Luminaire housing made from extruded aluminium profile with an angular, slim design (profile 45 x 15 mm). Pendant fitting with adjustable cable suspension and included feeder cable. Linear light inset in plastic fitted with single LED light points. Recessed light point plane and dedicated lens technology provide efficient glare control while maintaining high system efficacy. Optical options include wide-flood lenses or high-quality micro-faceted aluminium reflectors for precise symmetrical light distribution. Can be specified as direct, indirect or direct/indirect variants. Canopy for through-wiring; driver integrated in canopy. Optional presence/brightness ESSENTIAL sensor and DALI-2 control available.

Product highlights / features

• Slim extruded aluminium housing (45 x 15 mm)
• Direct / indirect light distribution variants (spotline, louver, lens)
• Glare control via recessed light points and special lens technology
• Optical options: wide-flood lenses or micro-faceted reflectors
• High system efficacy options (up to 179 lm/W)
• Sustainability options and certifications (Cradle to Cradle for selected configurations)
• ESSENTIAL sensor option (presence / brightness)

Light distribution
Suspended direct/indirect arrangement with symmetrical radiation characteristic. Available with wide-flood lenses or micro-faceted reflectors to tailor the photometric distribution for architectural applications.

Technical specifications

• Model family: ENVIVA suspended
• Housing: extruded aluminium profile, angular design
• Dimensions: slim profile, 45 x 15 mm
• Finishes: raw aluminium or powder-coated
• Mounting: pendant fitting with adjustable cable suspension; canopy for through-wiring
• Optics: linear plastic inset, single LED light points; options: wide-flood lens or micro-faceted aluminium reflector
• Light output examples: indirect up to 3,810 lm; direct up to 3,700 lm
• Photometric classes: UGR ≤ 10 / ≤ 13 / ≤ 16 (configuration dependent)
• Colour temperature: 3000 K; 4000 K
• CRI: ≥ 80; ≥ 90 (3 SDCM)
• System efficiency: up to 179 lm/W (configuration dependent)
• Lifetime: L90 at 100,000 h
• Control: DALI-2; DALI-2 ESSENTIAL sensor option
• Ingress protection: IP20
• Certifications / sustainability: Cradle to Cradle Certified® for selected inset types; Product pass available
