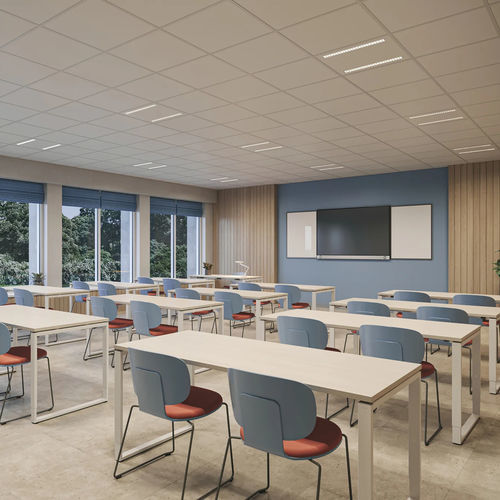

Recessed light fixture INTO

LEDrectangularsquare

Quickinfo

• 3000 K, 4000 K, tunable white 2700 - 6500 K
• CRI ≥ 80, optional CRI ≥ 90 / 3 SDCM (initial MacAdam)
• UGR ≤ 16 (some variants), UGR ≤ 19
• Up to 177 lm/W
• L90 / 100000 h
• DALI-2
• IP20

Description
Square or rectangular lay-in luminaire made of sheet steel, designed for modular ceilings (600×600 or 625×625) with visible grid system. Surface powder coated. Optionally fitted with two or three interchangeable linear light insets made of plastic and single LED light points recessed into the light plane to reduce glare. High efficiency is achieved through specialized lens technology and inserted lenses providing a wide flood characteristic, or via a high-quality micro-faceted aluminium reflector, or with specially computed wide beam lenses. Precise symmetrical light distribution. Includes converter and is suitable for through-wiring. Plug-and-play connection cables between insets and converter with plug/socket system. Energy-efficient LEDs with very good colour rendering.

Features

• Square or rectangular lay-in design for modular ceilings (600×600 or 625×625)
• Surface powder coated steel housing
• Two- or three-inset variants (interchangeable)
• Single LED light points recessed for glare reduction
• Special lens technology and inserted lenses for wide flood characteristic
• Optional high-quality micro-faceted aluminium reflector
• Precise, symmetrical radiation characteristics
• Includes converter; suitable for through-wiring
• Plug & play connection cables between insets and converter (plug/socket)
• Available with DALI-2 dimming

Light distribution
Inserted lenses with a wide flood radiation characteristic; or high-quality reflector with micro-faceted, aluminium-vapourised surface; or specially computed wide beam lenses. Precise radiation characteristic with symmetrical light distribution.

Marketing / suitability

• Suitable for grid/modular ceilings
• Easy mounting and installation
• High efficiency up to 177 lm/W (variant-dependent)
• Compliant with DIN EN 12464-1 for UGR ≤ 19

Technical specifications

• Color temperatures: 3000 K, 4000 K, tunable white 2700 - 6500 K
• Colour rendering: CRI ≥ 80; optional CRI ≥ 90 (3 SDCM)
• Unified Glare Rating: UGR ≤ 16 (some variants), UGR ≤ 19
• Efficiency: up to 177 lm/W (depending on variant)
• Lumen maintenance: L90 / 100000 h
• Control / Dimming: DALI-2
• Protection class: IP20
• Construction: sheet steel lay-in luminaire for modular ceilings 600×600 or 625×625
• Optics: exchangeable light insets; options include wide flood lenses, wide beam lenses, or micro-faceted aluminium reflectors
• Installation: plug-and-play cables between insets and converter; suitable for through-wiring; easy mounting
• Accessories / options: two- or three-inset variants; reflectors or lenses in various finishes (chrome, black, traffic white, jet black)
